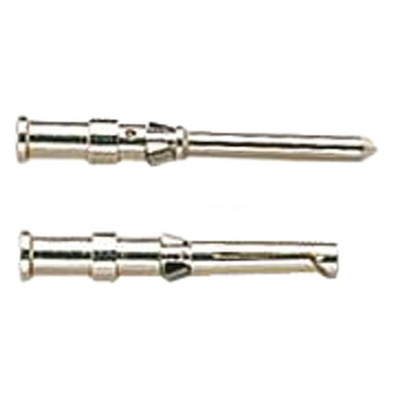

09150006302, HARTING Han D Male 10A Crimp Contact Minimum Wire Size 1mm² Maximum Wire Size 1mm² for use with Han D GoldTec Industrial

7643994
Номер производителя: 09150006302Производитель: HARTING
Цена за шт. (норма упаковки 100 шт)
432.00 руб. (С НДС) *
Количество 100+ 1000+ 2500+
Цена 432.00 руб. 420.00 руб. 408.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Han® GoldTec Contacts

This range of Han-GoldTec contacts establishes a new technology in contact surface finishing. They are composed of a durable nickel-phosphorous-alloy, plated with gold and as a result, reliable connections are guaranteed with their multiple-layer surface.They have the same excellent features as the well-known gold plated contacts and have conclusively proved to be extremely resistant and durable following tough testing.

Corrosion free even after extreme exposure to sulphur, nitrogen and chlorine (EN 60068)
Extremely robust - the gold surface is not damaged after 500 mating cycles
All standards requirements concerning power and data transmission are met (EN 61 984)
Available for all contacts with crimp terminal up to 16 A rated current
Corrosion free even after extreme exposure to sulphur, nitrogen and chlorine (EN 60068)
Current carrying capacity is as high as gold plated contacts
IContact resistance.. Han®D: < 3 mΩ Han®E: < 1 mΩ

Техническая спецификация
pdfHan D Male GoldTec contact
Maximum Wire Size mm²:
1мм²
Minimum Wire Size mm²:
1мм²
Диапазон:
Han D GoldTec
Для использования с:
Han D GoldTec Industrial Connector
Концевая заделка:
Crimp
Номинал тока:
10A
Номинальное напряжение:
250 В
Род:
Male
Серия:
Han D
Тип аксессуара:
Обжимной контакт
