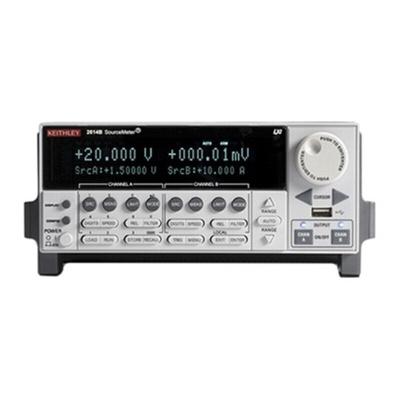

2614B Series, 2614B | Keithley 2600 2 Ch Source Meter, 60 W, ±100 nA → ±10 A, ±200 mV → ±200 V

7683403
Производитель: Keithley
Цена за шт.
3150000.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Keithley Source Meter Series 2600B/
Series 2600B Source Meter current/voltage source and measurement instruments are built from Keithley's 3rd generation SMU technology. Each tightly integrated instrument offers the capabilities of a precision power supply, true current source, 6 digit DMM, arbitrary waveform generator, pulse generator and electronic load. Series 2600B Source Meter models feature built-in Java-based test software which enables true plug \u0026 play I/V characterisation through any browser, on any computer, from anywhere in the world. Series 2600B is a family of powerful instruments with unique capabilities in testing components and devices across many applications including R\u0026D, production test, education and QA/FA.
Features and Benefits:/
4-quadrant voltage/current source and measure with 6 digit resolution (2-line VFD display) Choose model from series offering exceptional dynamic range, 10A pulse to 0.1fA and 200V to 100nV Built-in Java-based test software Test Script Processing (TSP) technology embeds complete test programs for best-in-class system-level throughput TSP-Link expansion technology for multi-channel parallel test without a mainframe USB 2.0, LXI-C, GPIB, RS-232 and digital I/O interfaces Software drivers and development/debug tools supplied Model choice includes lower specification (2604B, 2614B, 2634B) instruments
Typical Applications:/
Semiconductor Structures- Wafers / Thin films Nanomaterials and Devices- Graphene / Carbon Nanotubes/ Nanowires /Low Power nanostructures Discrete and Passive Components- Resistors / diodes / Zener Diodes / LEDs, disk drive heads, sensors- small signal bipolar junction transistors (BJT s), Field Effective Transistors(FET s) Organic Materials and Devices- E-links / Printable Electronics Material Characterization- Resistivity / Hall Effect
Model 2614B does not include TSP-Link, Contact Check and Digital I/O capabilities
Operator and programming manuals, low noise triax cable 2m (6.6ft) with alligator clip, mating screw terminal connectors with strain relief and covers, TSP-Link/Ethernet cable (2 per unit), TSP Express software tool (embedded), Test Script Builder software (on CD), LabVIEW driver
Keithley Power Supplies

Datasheet
Mfr Part No.:
2614B Series
Source Meter Function:
Current Resistance Voltage Measure, Current Voltage Source
Диапазон измерения сопротивления:
500 nΩ → 100 TΩ
Диапазон напряжения источника:
±200 mV → ±200 V
Диапазон тока источника:
±100 nA → ±10 A
Количество каналов:
2
Мощность выходная:
60 W
