RS PRO Surface ESD Tester, Тестер

7768318
Производитель: RS PRO
Цена за шт.
230007.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Analogue Surface Resistance Test Kit

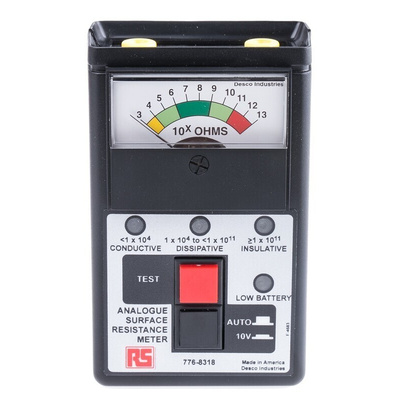

The Analogue Surface Resistance Test Kit is a portable battery-powered instrument designed to measure resistance point-to-point (Rp-p) and surface to ground (Rg). The meter is equipped with an automatic test voltage selector. The test voltage will switch from 10V to 100V should the measured resistance exceed 10 ohms.

Analogue compliance verification surface resistance checker
Automatic test range voltage selection compliance verification required by EN 61340-5-1
Portable operation with 9 Volt battery
LED Illuminates when battery power is low

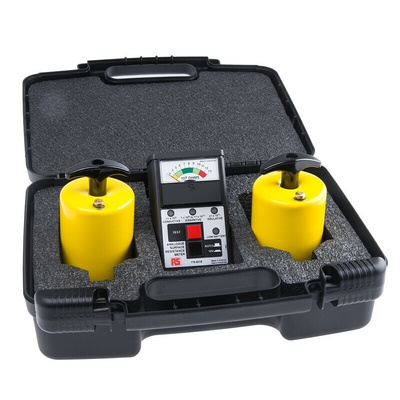

Supplied with

1 Analogue surface resistance meter, 1x 9V alkaline battery, 2 shielded test leads, 2x 2.27 kilograms electrodes, 1 plastic Carrying Case, 1 certificate of calibration

RS Pro Surface ESD Tester Description

The Analogue Surface Resistance Test Kit is a portable battery-powered instrument designed to measure resistance point-to-point (Rp-p) and surface to ground (Rg). The meter is equipped with an automatic test voltage selector. The test voltage will switch from 10V to 100V should the measured resistance exceed 105 ohms.

ESD protected area products should be tested:
A. Prior to installation to qualify for listing in user’s ESD control plan. Approved ESD materials (see product qualification EN-61340-5-1 Table 3 - EPA Requirements)
B. During initial installation
C. For periodic checks of installed products as part of EN-61340-5-1 Compliance Verification testing per Table 3 - EPA Requirements.

Contents

1 x Analogue Surface Resistance Meter
1 x 9V Alkaline Battery
2 x Shielded Test Leads
2 x 2.27 kilograms Electrodes
1 x Plastic Carrying Case
1 x Certificate of Calibration

Specifications

Accuracy: +/- 1/2 decade
Meter: 0.2 kg
Kit: 5.4 kg
Meter: 11.4cm L x 7.1cm W x 5.3cm H
Plastic Carrying Case: 24.1cm L x 30.5cm W x 8.9cm H
Power Supply: 9V alkaline battery

Техническая спецификация
pdfRS Pro Datasheet
pdf57 Page ESD Control Selection Guide
Высота:
89мм
Глубина:
241мм
Источник питания:
Батарея
Контрольная точка:
Surface
Напряжение питания:
Соответствует EN 61340-5-1:
Да
Тип дисплея:
Аналоговый
Ширина:
305мм
