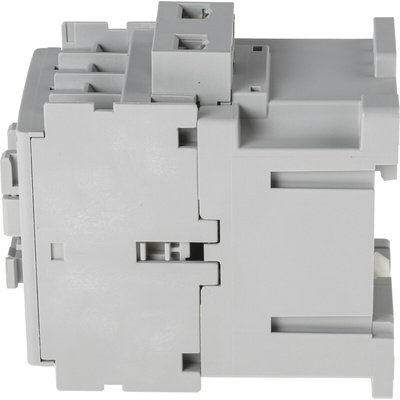

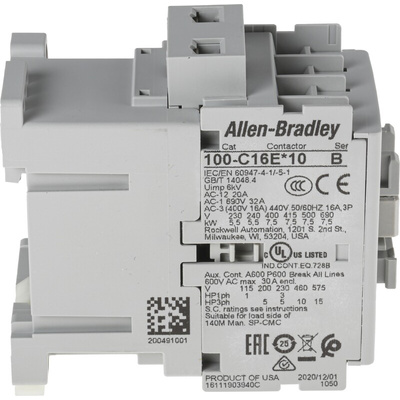

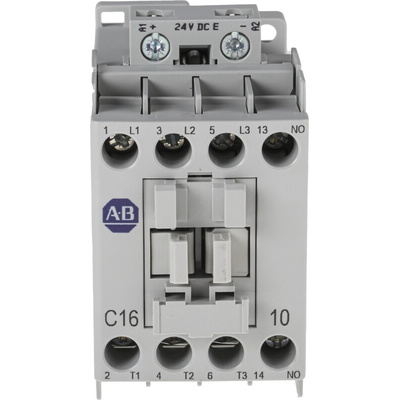

100-C16EJ10, Allen Bradley 100 Series 100C 3 Pole Contactor - 16 A, 24 V dc Coil, 3NO, 7.5 kW, Контактор

7768441
Номер производителя: 100-C16EJ10Производитель: Allen Bradley
Цена за шт.
35817.00 руб. (С НДС) *

Срок поставки: 7-9 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

100-C 24V DC Coil Operating Contactors

The Bulletin 100-C IEC contactor has a wide range of common accessories which provide a compact and flexible starter component system.

Max. switching voltage 690V (rated voltage) AC3
24Vdc coil draws 200W inrush, upto 16W Hold in
Electrical Life: 1.3 million operations
3 pole, 1 NO auxiliary contact on sizes 4 to 11kW
Built-in surge suppression

Note

Please ensure the power supply and any contacts used in the circuit can withstand 8.3A surge current

Standards

IEC947, EN60 947, VDE0660, UL508, CSA22.2.

Allen Bradley MCS (Modular Control System) Contactors

A modular motor control system allowing users flexibility to design and construct an adaptable system. It has been designed to take in to account the demands and requirements of modern motors and their users; satisfying requirements up to 85AC3. A wide range of accessories are also available to cater for many diverse needs. The ease of assembly, installation and modification can bring many benefits not only those related to cost, but can reduce the number of parts which need to be held. The compact size of the component parts, bring other benefits including reduction in enclosure volume required, modern design and weight savings are also gained. By applying a modular design concept and an easy to fit 'clip-in' method, all add to the class leading features and benefits of the MCS system.

DIN Rail
Surface Mounting

Техническая спецификация
pdfContactors Bulletin Data Sheet
Глубина:
86.5мм
Диапазон:
100 Серия
Длина:
81мм
Катушка напряжение:
24 В пост. тока
Количество вспомогательных контактов:
1
Количество полюсов:
3
Мощность номинальная:
7.5 кВт
Номинальное напряжение контакта:
690 В
Номинальный ток контакта:
16 A
Нормальное состояние конфигурации:
3NO
Рабочая температура - максимальная:
+60°C
Рабочая температура - минимальная:
-25°C
Серия:
100C
Ширина:
45мм
