DPI104S-10G, Druck DPI104S Hydraulic/Pneumatic Digital pressure indicator - RS Calibration, Манометр

7853160
Номер производителя: DPI104S-10GПроизводитель: Druck
Цена за шт.
332100.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

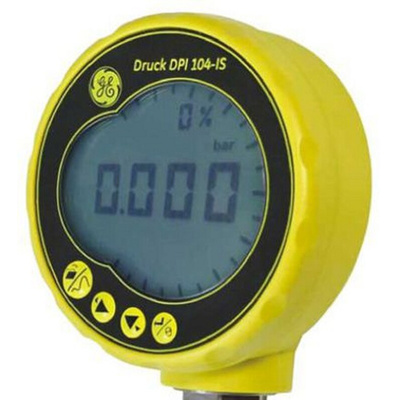

Druck DPI 104 - IS Digital Pressure Gauge - Intrinsically Safe

Combining precision and functionality within a compact and robust design, the DPI 104 range of digital pressure indicators are microprocessor-controlled gauges. Featuring advanced silicon sensor technology and convenient design features to create an accurate and versatile test gauge. These pressure gauges are digital with a digital display and are network-capable alternatives to standard analogue test gauges. They have the capability to function as a master test gauge when used in conjunction with pneumatic and hydraulic hand pumps. Druck's digital pressure gauges provide a reliable and economical solution for a multitude of pressure sensing applications, process and monitoring also test and calibration.

Features & Benefits

• Has an accuracy of 0.05% FS including non-linearity, hysteresis, repeatability and temperature effects from 14°F to 122°F (-10°C to 50°C)
• Five-digit resolution and pressure reading
• As well as numeric pressure indication, the instrument also has a pressure bar graph - the DPI 104 – IS LCD display includes a circular twenty segment bar graph which provides users with a fast and accurate visual estimation of pressure that ranges from 0 - 100% full-scale output
• The display updates twicer per second
• Minimum and maximum valves functionality can be enabled, disabled and reset by the user
• Programmable to provide a 0-5V output signal, this is configurable
• The alarm output consists of an open drain field effect transistor (maximum current 250 mA, maximum voltage 24 VDC)
• Druck's DPI 104 - IS pressure unit had adjustable mounting positions, the housing rotates 320° around the pressure fittings and the faceplate can be rotated in any orientation for optimum visibility
• There is a guard against unauthorized menu access with a menu and tare lock function
• Up to 99 DPI 104 – IS instruments can be connected together in a daisy chain-configured network
• UPM modules can be connected to the DPI 104 – IS to enhance the accuracy and extend the pressure range
• Druck's digital pressure gauge has a stainless steel or Inconel pressure cavity for aggressive media
• Free of charge monitoring and control software
• Eleven selectable pressure units
• Pressure ranges to 20,000 psi (1400 bar)
• Intrinsically Safe
• ATEX and IECEx approvals

Did you know?

The "IS" in the name of a pressure indicator stands for intrinsically safe, if an item is intrinsically safe it means that it is incapable of releasing sufficient electrical and thermal energy under normal or abnormal conditions. This results in the item not being able to cause ignition of a specific hazardous atmospheric mixture in its most easily ignited concentration.

What's included?

• 9V alkaline battery, type MN1604
• Quick reference guide
• Calibration certificate

Approvals

ATEX, IECEx, CSA

Техническая спецификация
pdfDPI 104-IS Druck Digital Test Gauge Data Sheet
Калибровка:
RSCAL
Корпус материал:
ABS, PC
Минимальное измерение давления:
0бар
Модель р:
DPI104S
Наилучшая точность:
0.05%
Наружный диаметр манометра:
95мм
Рабочая температура - максимальная:
+50°C
Рабочая температура - минимальная:
-10°C
Тип интерфейса:
RS232
Тип манометра:
Hydraulic, Pneumatic
