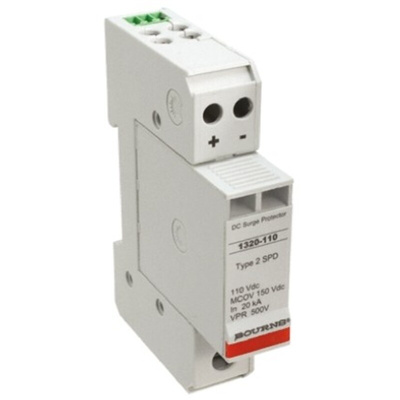

1320-S-110, Bourns, 1320 150 V dc Maximum Voltage Rating 40kA Maximum Surge Current 2 Pole Protector, DIN Rail

7858180
Номер производителя: 1320-S-110Производитель: Bourns
Цена за шт.
33909.00 руб. (С НДС) *
Количество 5+ 10+ 20+ 30+
Цена 32556.00 руб. 30861.00 руб. 28146.00 руб. 25092.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Bourns DC Surge Protection Devices

Matched high energy MOV
Internal thermal disconnects
Status indicator
Replaceable modular design
DIN Rail compatible base
Remote signalling capability

Surge Protection Devices, SPDs (DIN-rail)

Voltage surges, often referred to as spikes or transients are typically caused by switching of fluorescent lights, fuses blowing or nearby lightning activity. The worst voltage surges are usually caused by lightning and can reach up to 6000V, with current surges of over 3000A. The maximum size of the voltage and current surges depends on the location within the building's wiring system. BS7671: 2011 Amendment 1 Sections 443 and 534 cover risk assessment and provides guidance on protection of electronic equipment for installation engineers to follow. The fullest information on lightning and surge protection comes from the BSEN 62305 series of standards.

Техническая спецификация
pdf1320 Series DC Power Surge Protective Device
pdfBourns PortNote Solution for 1320 Series Power Surge Protective Devices - Update Memo
Высота:
90мм
Глубина:
67мм
Длина:
18мм
Максимально допустимое напряжение:
150 В пост. тока
Максимальный ток перенапряжения:
40кА
Рабочая температура - максимальная:
+85°C
Рабочая температура - минимальная:
-40°C
Размеры:
18 x 67 x 90мм
Серия:
1320
Тип монтажа:
DIN Rail
Тип супрессора:
2 Pole Protector
