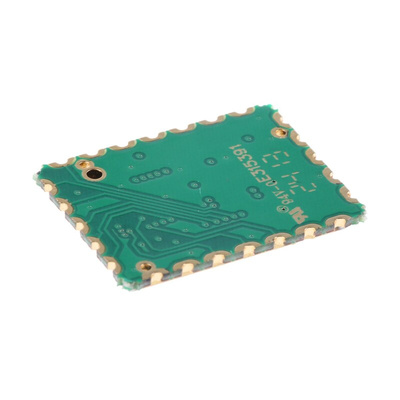

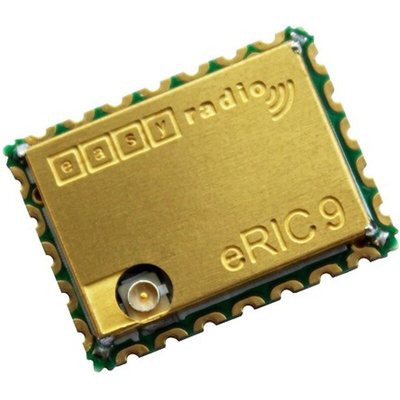

LPRS easyRadio ERIC9 RF Transceiver Module LPRS, eRIC9

7869578
Номер производителя: LPRS, eRIC9Производитель: LPRS
Цена за шт.
10464.00 руб. (С НДС) *
Количество 5+ 10+ 25+
Цена 10191.00 руб. 9927.00 руб. 9681.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

eRIC9 868/915MHz ISM Transceiver

The easy Radio Intelligent Controller (eRIC9) radio transceiver module is based on a Texas Instruments CC430 System-on-Chip (SoC) device. THe processor Flash memory is programmed with a protected version of easyRadio Operating System (eROS) which provides the user with high-level access to all the radio functions. Part of the Flash memory area is available for application code. The module eliminates the need for a separate host microcontroller and so minimises cost and power consumption for simple ’sense and control’ RF nodes such as might be required for the ’Internet of Things’ (IoT).

CC430F5137 SoC, MSP430-core, 32KB Flash memory, 4KB RAM
Embedded eROS Operating System
Carrier Frequency: 868/915MHz ISM-Band, pin-selectable
Max RF Output Power: +7dBm
Receiver Sensitivity: -109dBm @ 1200bps
Max RF Data Rate: 500kbps
Max Host Data Rate: 115.2kbps
AES-128 data encryption/decryption
Programmable User GPIO
Communication: serial UART with RTS/CTS handshaking
On-board temperature sensor
U.FL connector for external antenna
On-board +3.3V LDO voltage regulator
Power supply: +2.4V to +6.0Vdc
Operating Temperature Range: -40 to +85°C
Dimensions: 15 x 20 x 2.2mm SMD format

Wireless Modules - Low Power Radio Solutions

Техническая спецификация
pdfeRIC Radio Transceiver Data Sheet
Классификация комплекта:
Модуль
Название комплекта:
easyRadio ERIC9
Радиочастотная технология:
RF Transceiver
Частота:
868 МГц, 915 МГц
