LCM1500Q-T-4, Artesyn Embedded Technologies, 1.5kW Embedded Switch Mode Power Supply SMPS, 24V dc, Enclosed, Medical Approved, Источник питания

Artesyn Embedded Technologies Embedded Switch Mode Power Supply

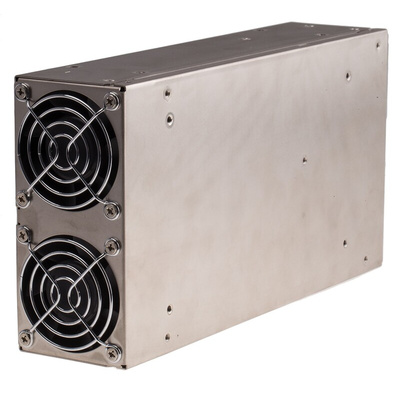

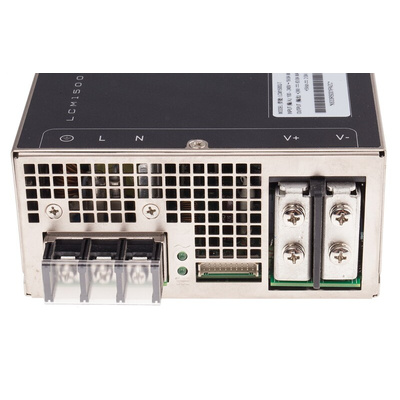

The Artesyn Embedded Technologies embedded switch-mode power supply from the LCM 1500 series is a 1500W rated, AC to DC plug-in device with 1 output. It is a cost-effective solution for single output high power requirements. This power supply utilises a fan, for self-contained thermal management at very low acoustic noise levels. It has a universal input supply voltage rating range from 90VAC to 264VAC.

Features and Benefits

Conformal coat option
DSP controlled
Fan noise is less than 45dBA, 80% load 30C, OFF with inhibit
Leakage less than 0.3mA at 264VAC
Output current is 67A at 24VDC
Total current is 133A maximum
Typical efficiency is 89%
Variable speed “smart fans”

Applications

Industrial
Medical application

Certifications

EMI Class B
EN61000
Industrial and medical safety approvals
UL60601
UL60950-1
VDE60601
VDE60950-1

LCM1500 Switch Mode Power Supply Data Sheet
