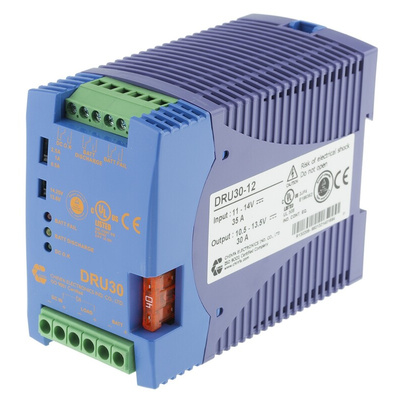

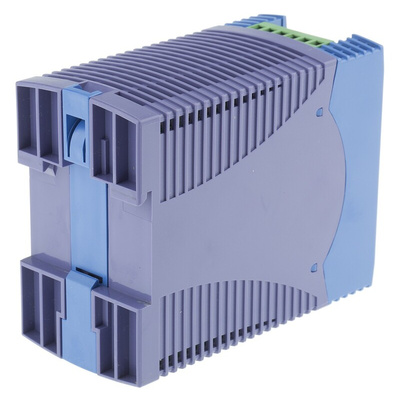

DRU30-12, Chinfa DRU30 Battery Charger DIN Rail Panel Mount Power Supply 12V dc Output Voltage, 30A Output Current, Блок питания

7894079
Номер производителя: DRU30-12Производитель: Chinfa
Цена за шт.
37788.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

CHINFA DIN Rail Power Supply

The CHINFA DIN Rail DRU series battery backed power supply has a universal input voltage ranging between 11VDC and 14VDC with a built-in active PFC. The DRU has a built-in boost, a current limited charger which can provide either afloat or fast charge voltage to the battery. The rated output current is 30A at 12VDC output voltage. It also provides automatic battery reverse polarity protection and low voltage deep discharge protection to prevent permanent damage to the battery. This power supply is designed for DIN rail UPS systems.

Features and Benefits

Automatic battery polarity protection
Battery low voltage disconnect (LVD)
Built-in battery test function
Operation temperature ranging between -40°C and 71°C
Parallel connection to a DC bus
Relay and LED alarms
Ripple factor and noise is 100mV

Applications

Electromagnetic drives
Factory automation
Industrial controls
Instrumentation

Certifications

CE certified
cUL
TUV
UL approved

Техническая спецификация
pdfDRU30 Series Data Sheet
Встречающиеся стандарты:
EN 55032, EN 62368-1, UL 508, UL 62368-1
Выходной ток:
30A
Глубина:
90мм
Количество выходов:
1
Максимальная температура:
+71°C
Минимальная температура:
-40°C
Напряжение выходное:
12В пост. тока
Пульсации и шум:
100мВ
Серия:
DRU30
Среднее время безотказной работы:
555000ч
Тип:
Battery Charger
Ширина:
114мм
