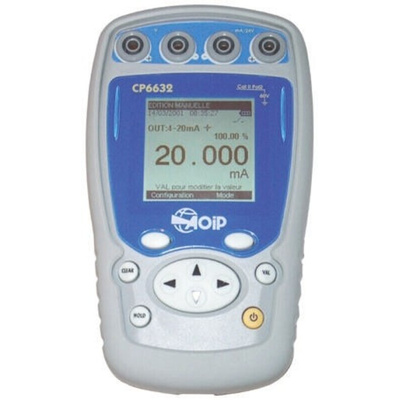

Aoip Instrumentation CP-6632 Current & Voltage Calibrator 0 → 25 mA UKAS Calibration, Калибратор

7915451
Номер производителя: CP6632Производитель: Aoip Instrumentation
Цена за шт.
240900.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Aoip Instrumentation Current and Voltage Calibrator

The Aoip Instrumentation current and voltage calibrator is an accurate handheld instrument for process signals (150 ppm reading accuracy). This device measures or generates process current and voltage. It has a current measurement from 0mA to 25mA with 24V loop power supply and voltage from 0V to 50V. The calibrator is robust and easy-to-use. This tool has been designed to make maintenance operations easier on sensors and transmitters using process signals such as 4-20mA or 0-10V. The instrument is adapted to the various process installations due to scaling function and specific ranges. It is responsible for simulating ramps, steps, and fixed values to control process transmitters, panel meters and recorders.

Features and Benefits

Voltage/ current calibrator for process loops.
Current simulations from 0mA to 25mA with 24V loop power supply and voltage from 0V to 15V
High accuracy 0.015% reading with an adjustable resolution of 1mV and 1μA
Values displayed in A, mV and, %
Low temperature coefficient: 15ppm/°C in voltage and 20ppm/°C in current
Active or passive loop power supply
Measurements with HOLD function
Simulation of ramps, pre-programmed steps and synthesiser values
Display of minimum, maximum and average value
Delivered with 4 alkaline AA batteries in standard
Backlight enabled
Continuity test
Compatible with HART transmitters
Impact proof sheathing
USB socket for downloading
Supplied with measurement cables

Applications

Electrical servicing and maintenance
Laboratories
Electronic servicing and maintenance
Industrial automation

Certifications

IP45 rated
EN 61010-1
EN 61000-4-2
EN 61000-4-3
EN 61000-4-5
EN 61000-4-6
EN 61000-4-11
EN 61000-3-2
EN 61000-3-3
EN 55022, class B

Техническая спецификация
pdfCP6632 Test Tool for Process Signals Data Sheet
Абсолютное максимальное измеряемое напряжение:
50В
Абсолютный максимальный измеряемый ток:
25мА
Вес:
306гр
Высота:
45мм
Длина:
157мм
Источник питания:
Батарея
Калибровка:
UKAS
Категория безопасности напряжения:
60В
Категория безопасности уровня:
CAT II
Максимальное напряжение источника:
15В
Максимальный ток источника:
25мА
Минимальное напряжение источника:
Минимальный ток источника:
0мА
Модель р:
CP-6632
Наилучшая точность:
±0.015 %
Рабочая температура - максимальная:
+50°C
Рабочая температура - минимальная:
-10°C
Размеры:
157 x 85 x 45мм
Тип батареи:
AA
Ширина:
85мм
