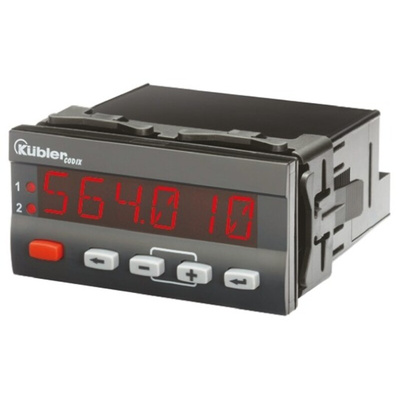

6.564.010.300, Kübler Kubler CODIX 564 On/Off Temperature Controller, 96 x 48mm, RTD, Thermocouple Input, 10 → 30 V dc Supply, Контроллер

7915984
Номер производителя: 6.564.010.300Производитель: Kübler
Цена за шт.
73929.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Codix 564 - Temperature Controller

The temperature controller Codix 564 displays temperature values in high resolution. In addition it can monitor and control 2 limit values. All current temperature sensors, such as thermocouple, as well as mV inputs, Pt100 and resistance inputs, can be connected to the device.
These fast displays set new standards when it comes to user friendliness. Their easy-to-read 14-segment LED display, easy-to-understand running help texts and a practical quick-start guide eliminate the need to wade through time-consuming full instruction manuals.

6-digit display, 14-segment LED, 14 mm high
Simple programming via 4 keys on the front
One front key as well as 2 additional inputs can be programmed for specific applications
Sampling rate of 10 readings per second
MIN/MAX memory function, individually resettable
Digital filter (first-order) for smoothing display fluctuations with unstable input signals
Customised linearization via 12 control points
2 relay outputs (changeover contacts) for limit monitoring with hysteresis and ON/OFF delay function
Auxiliary sensor power supply with AC version
Inputs and outputs galvanically isolated

Kubler Controller

Техническая спецификация
pdfDatasheet
pdfOperating Instructions
Глубина панели:
90.5мм
Напряжение питания:
10 → 30 В пост. тока
Рабочая температура - максимальная:
+65°C
Рабочая температура - минимальная:
-20°C
Размер:
96 x 48мм
Серия:
CODIX 564
Тип входа:
K тип Термопара
