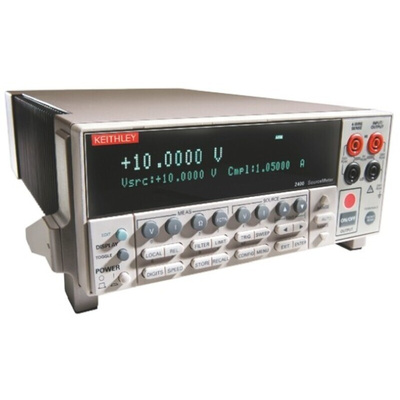

Keithley 2430 Sourcemeter, 1 Ch, 0.2 Ω → 200 MΩ ±10 μA → ±10 A ±200 mV → ±100 V 1000 W, Источник-измеритель

7962677
Номер производителя: 2430Производитель: Keithley
Цена за шт.
4320000.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Keithley SourceMeter Series 2400

The Keithley SourceMeter Series 2400 offers the combination of low cost, tightly integrated sourcing and measurement, and wide dynamic range. This makes the Series 2400 models well suited for benchtop and system applications with low voltage requirements and with limited test hardware budgets. Principal applications include high brightness LED forward/reverse I-V and LIV (light-current-voltage) testing, solar cell efficiency test (source and sink current) and precision DC load characterisation - replacing readback supplies or supply/DMM combinations, which typically provide insufficient accuracy (IDDQ testing). Other applications include: active/passive component test, voltage/current/resistance measurements; battery operation validation for portable electronic devices; characterising implantable medical devices (e.g. pacemakers); characterising low-leakage electronic device/circuits (forward/reverse, transistor gain/leakage); calibrating 3- to 4-digit data acquisition boards, meters and DMMs.

Class of instruments designed for high speed DC testing
Wide dynamic range
4-quadrant operation
0.012% basic accuracy with 5-digit resolution
6-wire Ω measurement with programmable I source and V clamp
Ohms range <0.2Ω to >200Ω
1700 readings/second at 4 digits via GPIB
Built-in comparator for fast pass/fail testing
Digital I/O for fast binning and connection to component handlers

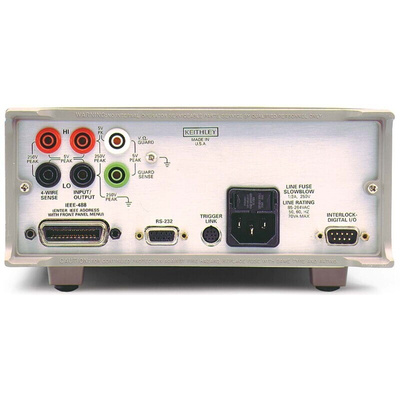

GPIB, RS-232 and Trigger Link interfaces

Note

All SourceMeter instruments provide 4-quadrant operation. In the 1st and 3rd quadrants, they operate as a source, delivering power to a load. In the 2nd and 4th quadrants, they operate as a sink - dissipating power internally. Voltage, current and resistance can be measured during source or sink operation.

Supplied with

Test leads and (downloadable) LabVIEW software driver, LabTracer software, TestPoint software driver

Keithley Power Supplies

Техническая спецификация
pdfSeries 2400 SourceMeter Users Manual
pdfSeries 2400 SourceMeter Data Sheet
Диапазон измерения сопротивления:
200 mΩ tΩ 200 MΩ
Диапазон напряжения источника:
±200 мВ → ±100 В
Диапазон тока источника:
±10 мкА → ±10 A
Количество каналов:
1
Мощность выходная:
1000 Вт
Серия:
2400
Функция источника-измерителя:
Current Resistance Voltage Measure, Current Voltage Source
