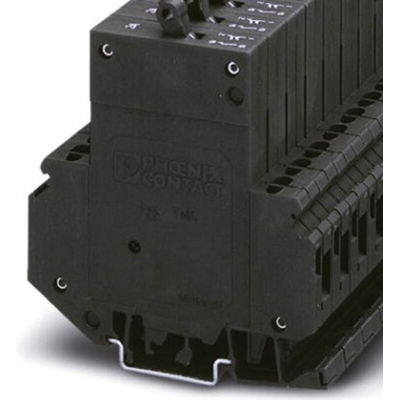

0914099, Phoenix Contact DIN Rail Mount TMC 1 Single Pole Thermal Magnetic Circuit Breaker - 65 V dc, 250 V ac Voltage Rating,, Автоматический выключатель

Phoenix Contact Thermomagnetic Circuit Breaker - F1

The DIN rail mounting, single pole, TMC range of thermomagnetic circuit breakers from Phoenix Contact have SFB tripping characteristics that give a maximum overcurrent protection over long cable paths.

Features and Benefits

• DIN rail mounting
• Trip faster than thermal device circuit breakers
• Only 12.5 mm wide
• Current rating 2 A to 16 A available
• Push in or screw connection available
• Integrated remote signalling
• Universal foot for mounting on NS 32 or NS 35

Typical Applications

TMC thermomagnetic circuit breakers are mostly used in process control, information and communication technology because of the different tripping characteristics.
The circuit breakers are a great solution for protecting valves, motors, logic controllers and frequency inverters.

TMC 1 F1 100 8,0A has a M3 screw thread for screw connection and 4 connections.

Phoenix Contact Circuit Breakers

Datasheet 914099
