P01654402, Chauvin Arnoux CA1631 RTD Calibrator 0 → 24 mA RS Calibration, Калибратор

8106409
Номер производителя: P01654402Производитель: Chauvin Arnoux
Цена за шт.
235164.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Chauvin Arnoux Calibrators CA1621, CA1623 & CA1631

These compact, robust, easy-to-handle calibrators have large LCD screens and are suitable for use in highly diverse on-site conditions. They can calibrate an instrument in its operating environment and without removing it from the process. The principal functions are simulation and measurement. They simulate a signal or generate a quantity with precisely-defined values, for applying upstream of the measurement chain, and measure the signal. The CA1621, CA1623 & CA1631 calibrators are designed to accurately measure, generate or simulate all the low-level signals encountered in industry. Applications include maintenance operations, commissioning, verification, on-line calibration and adjustment and testing of measurement lines.

Instruments for use in developing and verifying measurement chains
CA1621 temperature calibrator for J,K,T,E,R,S,B,N thermocouples and voltage in mV
CA1623 temperature calibrator for Pt10,Pt50,Pt100,Pt200,Pt500,Pt1000 and Pt1000(JIS) probes and resistance

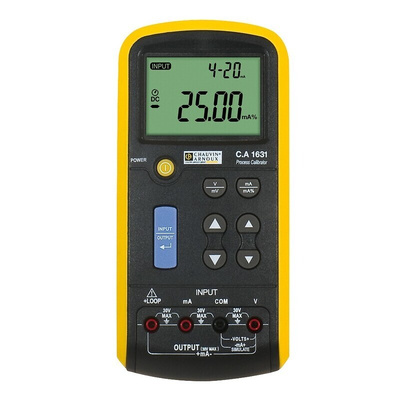

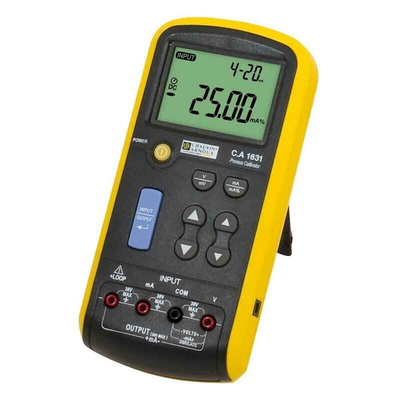

CA1631 current loop calibrator for measuring and supplying DC current loop 0 to 24mA, dc voltage between 0 and 20V
Calibrator dimensions 205 x 97 x 45mm
Calibrator weight 472g (including batteries)

Supplied with
type":"Supplied with",

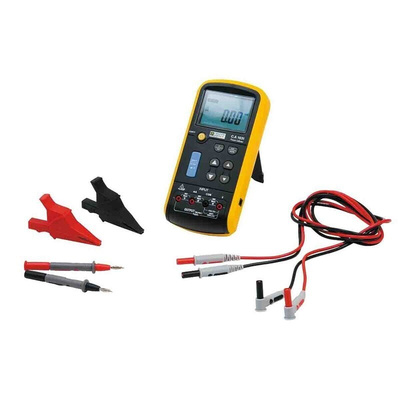

Test wires (2 pairs), crocodile clip, 6AAA 1.5V batteries (6), operating manual in 5 languages, carrying case

Техническая спецификация
pdfProcess Calibrator CA1631 Data Sheet
Абсолютное максимальное измеряемое напряжение:
20В пост. тока
Абсолютный максимальный измеряемый ток:
24мА
Вес:
472гр
Источник питания:
Батарея, Сетевой
Калибровка:
RSCAL
Максимальное напряжение источника:
0 мА, 20 В
Максимальный ток источника:
24мА
Минимальное напряжение источника:
Модель р:
CA1631
Наилучшая точность:
±0.015 %
Рабочая температура - максимальная:
+55°C
Рабочая температура - минимальная:
-10°C
Размеры:
205 x 98 x 46мм
Тип батареи:
AAA
