1119802, Lapp ÖLFLEX CLASSIC 110 2 Core YY Control Cable, 0.75 mm², 50m, Unscreened, Кабель

8124527
Номер производителя: 1119802Производитель: Lapp
Цена за 1 катушку (50 метров)
9954.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

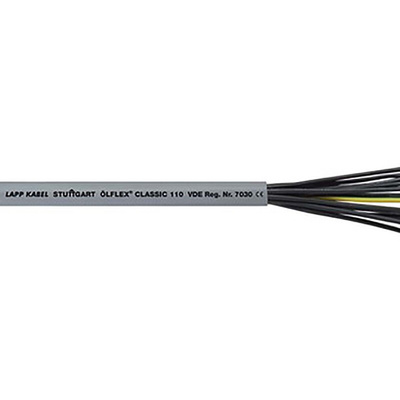

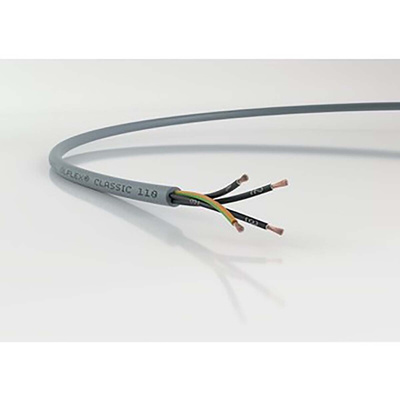

Ölflex Classic 110

From Lapp, the Olflex Classic 110 YY Cable is a robust cable designed for use under medium mechanical stresses, such as power chain applications. The cable is suitable for fixed installation purposes, as well as those that require occasional flexing and movement.

This YY control cable consists of fine wire copper strands, with a special PVC conductor insulation and sheathing that is suitable for use in both dry and humid conditions. The cable also has a good resistance to chemicals and oils, making it ideal for challenging industrial environments.

YY cable is an excellent control cable solution for a variety of applications.

Features and Benefits

• Flame-retardant according to IEC 60332-1-2
• Oil-resistant according to DIN EN 50290-2-22 (TM54)
• Chemical resistance at room temperature
• Suitable for dry and humid applications
• Resistant to bending

Applications

Lapp Olflex Classic 110 YY cable is suitable for a wide range of uses, and is often used in control and measurement applications. It is suitable for some torsional applications, and as such is can be found in wind turbine generators. This unscreened YY cable has a robust and reliable nature makes it ideal for;

• Machine Tools
• Plant engineering
• Refrigeration plant sectors
• Construction Industries
• Transport
• Smart Homes

Accessories

Lapp cables should be used alongside accessories that match their capabilities. Lapp provides a variety of reliable and easy-to-fit cable glands, such as the Skintop Click series.

• 560-678 is an M12 IP68 Skintop Click Cable Gland
• 475-091 is an M16 IP68 Skintop Click Cable Gland
• 475-136 is an M20 IP68 Skintop Click Cable Gland
• 475-132 is an M25 IP68 Skintop Click Cable Gland
• 560-688 is an M32 IP68 Skintop Click Cable Gland

Standards

VDE, This cable confirms to ECD 73/23/EEC (low voltage directive).

Техническая спецификация
pdfOLFLEX CLASSIC 110 Control Cable Data Sheet
pdfCables Selection Guide
Американский размер проводов:
18 AWG
Внешний диаметр:
5.4мм
Длина:
50м
Жилы:
24/0.20 мм
Кабель заземления:
Нет
Количество ядер:
2
Маслостойкость:
Да
Материал изоляции:
ПВХ
Материал оболочки:
Polyvinyl Chloride PVC
Материал проводника:
Медь
Минимальный радиус изгиба:
Fixed - 4 x D Occasional Flexing - 10 x D
Наполнитель:
Non-Wicking Filler
Номинал тока:
12 A
Номинальное напряжение:
300/500 В
Площадь поперечного сечения:
0.75 мм²
Рабочая температура - максимальная:
+80°C
Рабочая температура - минимальная:
-40°C
Серия:
ÖLFLEX CLASSIC 110
Сопротивление проводника:
26 Ом/км
Цвет оболочки:
Серый
Экранированный/неэкранированный:
Unscreened
