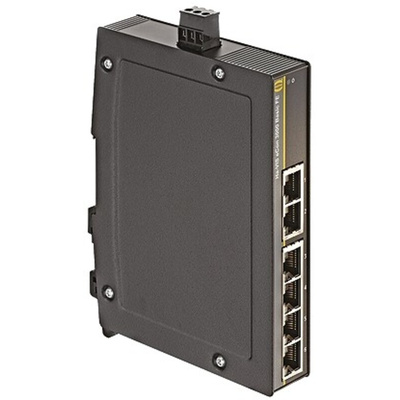

24030060000, Harting Ethernet Switch, 6 RJ45 port, 48V dc, 10 Mbit/s, 100 Mbit/s Transmission Speed, DIN Rail Mount, Коммутатор

8128866
Номер производителя: 24030060000Производитель: HARTING
Цена за шт.
70554.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Ha-VIS eCon 3000 Full Ethernet Basic

The Ha-VIS eCon 3000 Full Gigabit family of unmanaged Ethernet switches is equipped with up to 7 Gigabit Ethernet ports. It allows for cost-efficient and quick expansion and/or reconstruction of network infrastructures with high-bandwidth requirements.
The slender design of the switches enables a high packing density on the DIN Rail. The selection of switches includes various combinations of variants with RJ45 and fibre optic cables. Automatic detection of the transmission rate and the wiring of the twisted-pair data cable, allow for simple plug and play.

Features and Benefits

• Full Gigabit Ethernet non-blocking switch architecture according to IEEE802.3
• 2 to 7 Ethernet ports RJ45 and fibre optic ports
• Commercial temperature range 0°C to +55°C, industrial temperature range -40°C to +70°C
• Support of jumbo frame (10 kB)
• Wide range of power supply 24/48 V dc
• Surge protection and reverse polarity protection
• Minimum energy consumption due to energy-efficient Ethernet
• Optimised DIN Rail bracket

Applications

• Machinery & Robotics
• Automation
• Industrial network infrastructures
• Wind and solar energy
• Transportation
• Shipbuilding

Техническая спецификация
pdfFast Industrial Switch, RJ45 6 Port Drawing
pdfHa-VIS_eCon_2000_3000 - Type Approval Certificate
Вес:
536гр
Высота:
142мм
Глубина:
107.5мм
Дальность передачи:
100м
Максимальное напряжение питания:
60В пост. тока
Минимальное напряжение питания:
9В пост. тока
Монтаж:
DIN Rail
Номинальное напряжение питания:
48В пост. тока
Порты RJ45:
6
Рабочая температура - максимальная:
+70°C
Рабочая температура - минимальная:
-40°C
Размеры:
25 x 107.5 x 142мм
Скорость передачи:
10 Мбит/с, 100 Мбит/с
Ширина:
25мм
