24034050010, Harting Ethernet Switch, 5 RJ45 port, 48V dc, 10 Mbit/s, 100 Mbit/s, 1000 Mbit/s Transmission Speed, DIN Rail Mount, Коммутатор

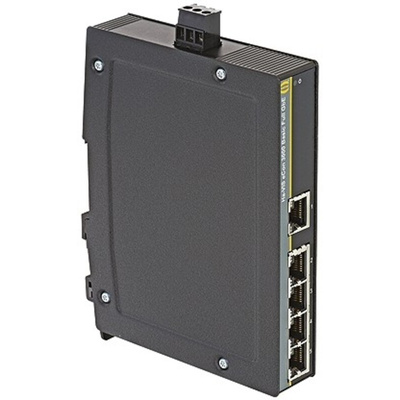

HARTING Ethernet Switch

The HARTING RJ45 5-port DIN rail mount Ethernet switch. It has an electrical rating of 24VDC to 48VDC. The Ha-VIS eCon 3000 series full Gigabit family of unmanaged Ethernet switches are equipped with up to 7 Gigabit Ethernet ports and allows for cost-efficient and quick expansion and/or reconstruction of network infrastructures with high bandwidth requirements. Automatic detection of the transmission rate (auto-negotiation) and the wiring of the twisted pair data cable (auto-polarity and auto-MDI(X)) allows for simple plug & play.

Features and Benefits

Support of jumbo frames (10 kB)
Surge protection and reverse polarity protection
Minimum energy consumption due to energy-efficient Ethernet
Optimised DIN rail bracket
Frame size 10kb
MAC table size 8k entries
Packet buffer size 1Mb
Housing width 25mm
Power consumption 140mA

Applications

Machinery & Robotics
Automation Industrial
Network infrastructures
Wind Energy
Solar Energy Transportation Shipbuilding

Certifications

CE certified
IEC 60068-2-6 Vibration
IEC 60068-2-6 Resonance search
IEC 60068-2-27 Shock test

Gigabit Commercial Switch, RJ45 5 Port Drawing

Ha-VIS_eCon_2000_3000 - Type Approval Certificate
