24034050020, Harting Ethernet Switch, 5 RJ45 port, 54V dc, 10 Mbit/s, 100 Mbit/s, 1000 Mbit/s Transmission Speed, DIN Rail Mount, Коммутатор

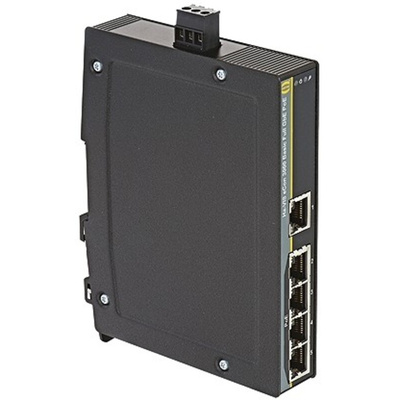

HARTING Ethernet Switch

The HARTING RJ45 5-port DIN rail mount Ethernet switch. It has an electrical rating of 24VDC to 48VDC. The Ha-VIS eCon 3000 series full Gigabit family of unmanaged Ethernet Switches offer a plug & play solution for DIN rail mounted connectivity. It is the slender construction and frontal port mounting of the switches, allowing for installation into space-restricted or hard-to-reach applications.

Features and Benefits

Switches work as power sourcing equipment (PSE) and can supply up to 4 terminal devices via PoE+ (34.2W per port)
RJ45 transfer length of 100m via twisted pair Cat. 5 with a 10/100 Mbit/s transfer rate
SC Duplex ports provide a transfer speed of 100Mbits/s with a range of 2KM (Multimode) and 15KM (Single Mode)
Energy-efficient Ethernet greatly reduces consumption
Non-Blocking full Ethernet Switching architecture, in accordance with IEEE 802.3
Auto-Negotiation, auto-polarity and auto-MDI(X) provide the user with a plug & play solution
Supports extra-long Ethernet frames (Jumbo frames)
Fibre-optic (SC Duplex) configuration options available
Reverse polarity & surge protection
Anodised Aluminium housing with powder-coated steel sheet
Optimised DIN rail bracket for a secure installation
Available without PoE/PoE+

Applications

Industrial network infrastructure
Machinery & Robotics
Automation
Transportation
Wind & Solar energy
Shipbuilding

Gigabit Industrial Switch, RJ45 5 Port Drawing

Ha-VIS_eCon_2000_3000 - Type Approval Certificate
