Digi International XB2B-WFWT-001 3.14 → 3.46V dc WiFi Module, 802.11b/g/n SPI, UART, Модуль

8187338
Номер производителя: XB2B-WFWT-001Производитель: Digi International
Цена за шт.
16122.00 руб. (С НДС) *
Количество 5+ 10+
Цена 15075.00 руб. 14994.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

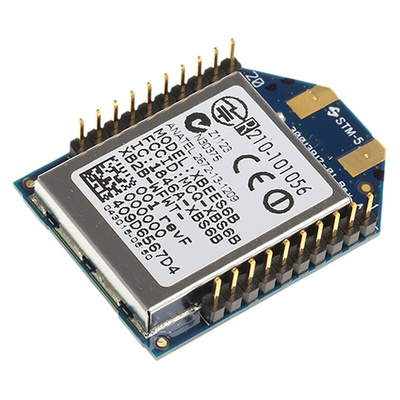

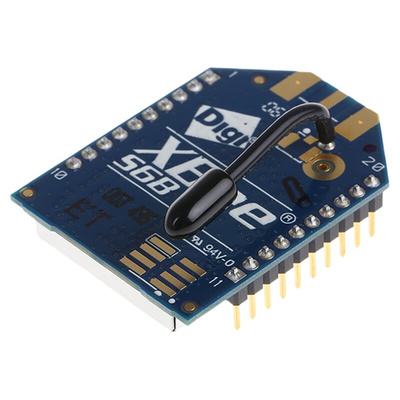

XBee Embedded Wi-Fi Module

XBee Embedded Wi-Fi transceiver modules are IEEE 802.11b/g/n compliant, providing wireless connectivity to an project via serial UART/SPI interfaces. Using SoftAP Provisioning mode, any Smartphone or Tablet with a web browser can connect to the XBee Wi-Fi and configure the module to connect to an existing Wi-Fi network. The XBee Wi-Fi module shares a common footprint with other XBee modules.This allows different XBee technologies to be drop-in replacements for each other; developers can switch from IEEE 802.11 standard to IEEE 802.15.4 for example.

Carrier Frequency: 2.4GHz ISM Band with 13 channels
RF Output Power: up to +16dBm (+13dBm for Europe/Australia/Brazil)
Receiver Sensitivity: -97 to -71dBm
OTA Data Rates: 11Mbps (802.11b), 54Mbps (802.11g), 72Mbps (802.11n)
Host communication: serial UART/SPI
Security: WEP, WPA-PSK and WPA2-PSK
4 channel 12-bit ADC
10 x GPIO pins
Power supply: +3.14V to +3.46Vdc
Operating temperature range: -30 to +85°C
Dimensions: 24.4 x 32.9 x 7mm (DIL), 22 x 34 x 3mm (SMT)
Applications: Wireless sensor networks, communication for the Internet of Things (IoT)

RS Product Codes
818-7329 XB2B-WFPS-001 SMT, PCB Antenna
818-7326 XB2B-WFUS-001 SMT, U.FL Antenna Connector
818-7322 XB2B-WFPT-001 DIL, PCB Antenna
818-7335 XB2B-WFUT-001 DIL, U.FL Antenna Connector
818-7338 XB2B-WFWT-001 DIL, Whip Antenna
818-7332 XB2B-WFST-001 DIL, RPSMA Antenna Connector

Approvals

FCC, IC, ETSI, C-TICK, Telec, Anatel

Техническая спецификация
pdfXB2B Xbee Wi-Fi
Длина:
24.38мм
Напряжение питания:
3.14 to 3.46V
Поддерживаемые интерфейсы шины:
SPI, UART
Поддерживаемые протоколы:
802.11b/g/n
Поддерживаемые стандарты безопасности:
WEP, WPA2-PSK, WPA-PSK
Рабочая температура - максимальная:
+85 °C
Рабочая температура - минимальная:
-30 °C
Размеры:
24.38 x 32.94мм
Ширина:
32.94мм
