IPSY1A11, ABB IPS Series Emergency Stop Foot Switch with Cover, 1 Pedal, Momentary Contacts, NO/NC, Ножной выключатель

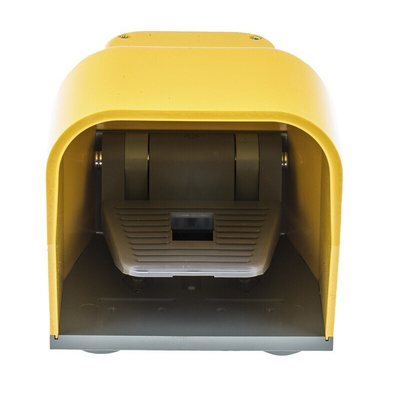

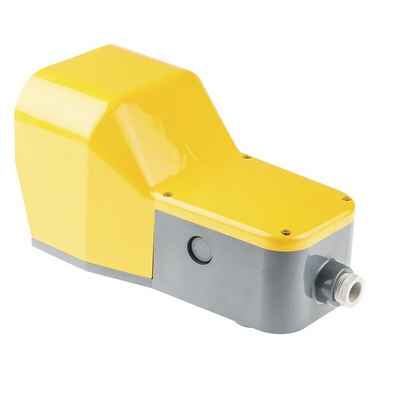

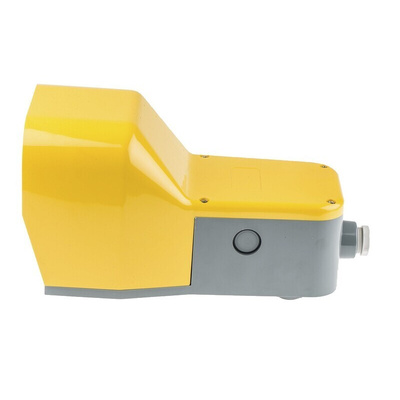

ABB Emergency Stop Foot Switch

The ABB IPS series single pedal, momentary contact emergency stop foot switch has single normally open and single normally closed as normal state configuration. It is yellow and is made up of thermoplastic fibreglass.

Features and Benefits

Snap action switch with cover
Visible operation
Electrically separated contacts
Rated impulse withstand voltage is 6kV
Rated operational current at 230VAC is 3.1A
Operating temperature ranges between -10°C and 70°C

Applications

Coil winding machines
Photo lab equipment
Sewing machines
Conveyor belts
Imprinting equipment
CNC machines

Certifications

IP65 (Plastic casing) rated
IP66 (Metal casing) rated
UL508 approved
UL94 approved
IEC 60068-2-6
IEC 60068-2-27
IEC 60947-5-1
IEC 68-2-3
IEC 68-2-11
CSA certified
EN 60947-1
EN 60947-5-1
IEC 60947-1
EN 50013
