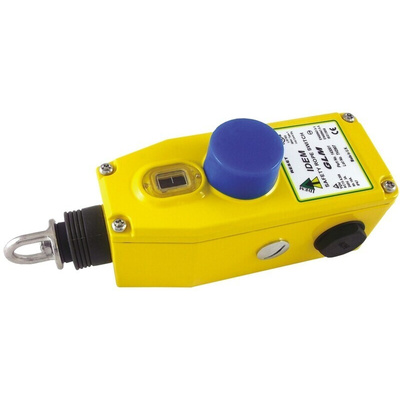

143050, IDEM GLM Cable Switch, Straight, 50m, 3NC, NO, Переключатель

8264097
Номер производителя: 143050Производитель: IDEM
Цена за шт.
29661.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

IDEM Guardian Line GLM Mini Safety Rope Pull Switches

The Guardian Line GLM from IDEM are safety rope pull switches with a compact yet robust yellow diecast housing that protect short conveyor lengths of upto 50m and offer a choice of fittings depending on the application. They are designed to be mounted on machines and sections of conveyors which cannot be protected by guards and unlike emergency stop pushbuttons can be activated from any point along the length of rope pull to provide robust emergency stop protection.
In combination with a dual channel safety monitoring relay these safety rope switches can be used as emergency stop devices and monitored for up to Category 4 to EN 954-1 or PLe ISO 13849-1. The Guardian Line conforms to ISO 13850 and IEC 60947-5-5 and has a positive mechanical linkage between the switch contacts and the wire rope, as well as wire breakage monitoring. Once the rope is pulled, anywhere along its length, the safety contacts are positively opened and the auxiliary contacts are closed. The switches are mechanically latched and can only be returned to the operational condition by pressing the blue reset button, as required by ISO 13950.

Switch mechanism will latch the instant the safety contacts open, ISO13850 standard
Upto 30m can be covered using a single switch
Upto 50m can be covered using two switches
Positive break contacts to IEC60947-5-1
Robust yellow diecast housing
IP67 protection
Rugged integral sealing bellows mean they can be high pressure hosed
All internal screws are stainless steel
Easy to wire with 3 x M20 conduit entries
4 pole, either 3NC / 1NO or 2NC / 2NO

Note

826-4101 & 826-4104 have an E-stop and LED.

Standards

IEC 60947-5-1, IEC 60947-5-5, EN 954-1, EN 62061, UL 508, ISO 13850, ISO 13849-1.

Approvals

CE, cULus, TUV.

Техническая спецификация
pdf102524 Safety Rope Switches Install
pdf102521 Rope Kits Installation
pdfIDEM Safety Switches Video
pdfMachine Guarding and Safety Range Overview
Ввод кабелепровода:
M20
Глубина:
57мм
Диапазон:
Guardian Line
Длина:
205мм
Кнопка E-Stop:
Нет
Кнопка сброса:
Да
Количество входов под кабель:
3
Конфигурация полюса:
4P
Максимальная диапазон троса:
50м
Максимальное напряжение переменного тока:
250В
Максимальное напряжение постоянного тока:
250В
Максимальный ток:
2.5 A
Материал корпуса:
Литой алюминий
Нормальное состояние конфигурации:
3NC, NO
Ориентация при монтаже:
Прямой
Рабочая температура - максимальная:
+80°C
Рабочая температура - минимальная:
-25°C
Размер кабельных входов:
M20
Размеры:
205 x 57 x 57 мм
Серия:
GLM
Степень защиты IP:
IP67
Ширина:
57мм
