116013, IDEM - IDEMAG RPR Magnetic Safety Switch, Plastic, 24 V dc, 2NC, Выключатель

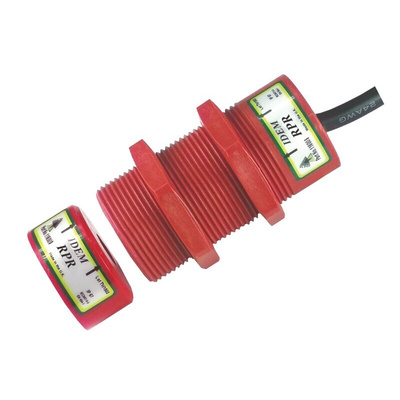

IDEM IDEMAG RPR Non Contact Safety Switch

The IDEMAG RPR safety switch has been developed for non-contact interlocking of hinged, sliding or removable guard doors.
It is ideal for applications that require a wide tolerance to misalignment, high switching capacity or high level of hygiene.
When used with a dual channel safety relay, this safety switch can be used to provide up to PLe/Category 4 to ISO13849-1.

Features and Benefits

Magnetic high-power switching
Dual channel safety outputs
Plastic high specification polyester housing
High temperature stability up to 80°C
High tolerance to guard misalignment
Resistant to many organic and inorganic chemicals
IP69K protection
Resistant to high temperature hosing and detergent wash down
Conformance to EN60947-5-3 PDF-S
Up to PLe ISO 13849-1
Cylindrical fitting suitable for all industry applications
Easy to install M30 threaded body - easy to set
10 mm wide sensing
Switching capacity 0.5 A

Applications

The IDEMAG RPR Non-contact Safety Switch is designed for use in general factory automation, packaging and some food processing industries.

Note

The normally closed (NC) circuits are closed when the guard is closed and the actuator is present.

Standards

EN1088 (ISO 14119), EN 60947-5-1, EN 60204-1, ISO 13849-1, EN 62061, UL 508.

Approvals

CE, cULus, TUV.

Supplied with

Actuator.
