RS PRO 2 Core YY Control Cable, 2.5 mm², 50m, Unscreened, Кабель

8274259
Производитель: RS PRO
Цена за 1 катушку (50 метров)
24519.00 руб. (С НДС) *
Количество 5+ 10+
Цена 23292.00 руб. 22068.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

RS PRO YY Cables

The YY control cables from RS PRO are number coded, reliable connecting electrical cables which combine the characteristics of a flexible mains cable, coupled with saving space due to the small cable diameters suitable for fixed installations.

These reliable YY cables work well within most environments, they can be used as interconnecting cables for measuring, controlling or the regulation of control equipment within assembly and production lines, conveyors and for computer units.

They are suitable for internal dry or moist conditions, they are resistant to various oils, acids and caustic solutions at room temperature. They may only be installed outdoors with UV-protection and by observing the temperature range.

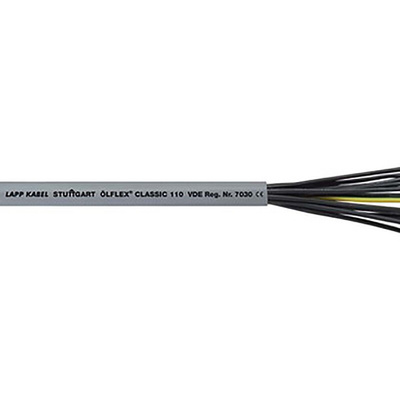

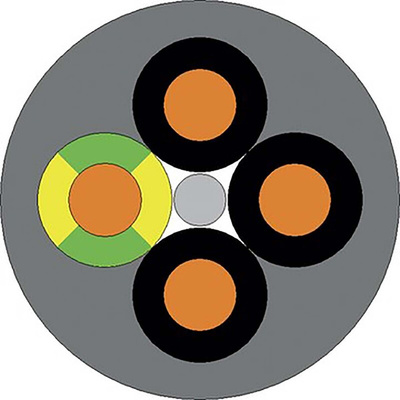

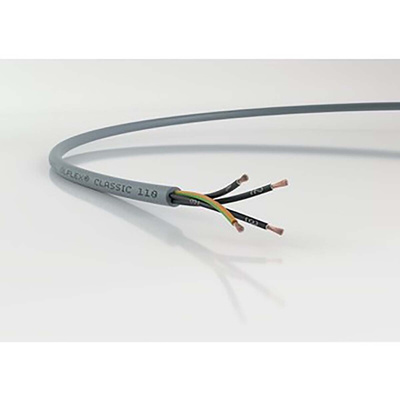

They are made from a tough outer grey PVC sheath, with a multi-core flex, they have fine copper wire strands with PVC based insulation. The cores are black with numbers on the sheath. Due to the way these cables are made and the materials used, there is a high degree of flexibility.

Features and Benefits

• Ideal for space saving installations
• Highly flexible due to the short twisted conductor layers
• Versatile multi-core power and signal cables
• Ideal for indoor use where light mechanical stresses are present
• Good chemical resistance
• YY control cable has a grey PVC outer sheathing
• White numbers on the outer sheath
• Operating temperatures of -40 to +80 °C
• These unscreened flexible multi-core cables have a voltage rating of 300/500V

Standards

VDE, This cable confirms to ECD 73/23/EEC (low voltage directive).

Note

YY cable is not suitable for fixed wiring applications requiring compliance with the requirements set out in BS7671.

Техническая спецификация
pdfDatasheet
pdfCables Selection Guide
Американский размер проводов:
13 AWG
Внешний диаметр:
7.5мм
Длина:
50м
Жилы:
50/0.25 мм
Кабель заземления:
Нет
Количество ядер:
2
Маслостойкость:
Да
Материал изоляции:
ПВХ
Материал оболочки:
Polyvinyl Chloride PVC
Материал проводника:
Медь
Минимальный радиус изгиба:
Fixed - 4 x D Occasional Flexing - 10 x D
Наполнитель:
Non-Wicking Filler
Номинал тока:
26 A
Номинальное напряжение:
300/500 В
Площадь поперечного сечения:
2.5 мм²
Рабочая температура - максимальная:
+80°C
Рабочая температура - минимальная:
-40°C
Сопротивление проводника:
7.09 Ом/км
Цвет оболочки:
Серый
Экранированный/неэкранированный:
Unscreened
