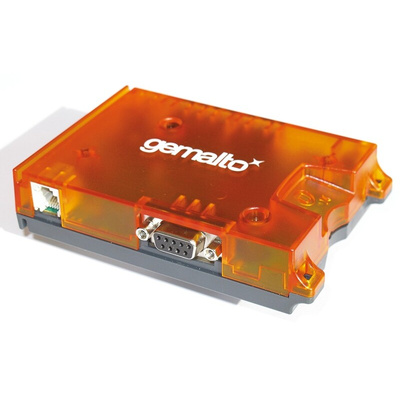

Gemalto (Cinterion) GSM & GPRS Module EHS6T-USB, Модуль

8476922
Номер производителя: EHS6T-USBПроизводитель: Gemalto
Цена за шт.
55743.00 руб. (С НДС) *
Количество 5+ 10+
Цена 54072.00 руб. 51366.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

EHS6T Terminals, Gemalto

The Gemalto (Cinterion®) range of EHS6T 3G M2M plug and play terminals allow for USB (EHS6T-USB) and Ethernet (EHS6T-LAN) connection.

The EHS6T terminals are ideal for any designer that is looking for speed, security, flexibility and cost-effectiveness in the development of their IoT (Internet of Things) applications.
With the inclusion of embedded Java, M2M modules and embedded MIMs (Machine Identification Modules), designers have access to the cloud based Sensor-Logic application enablement platform which enables rapid communication, high code reusability and reduces the need for any extra components.

There is also a variety of mounting options available that include DIN rail mounting, screw fixing, C-rail mounting and cable ties.

The EHS6T terminals are designed for use in the development of industrial applications such as metering, security, remote monitoring and transportation.


Features:
Compact enclosure
Embedded Java
SIM application toolkit
Variety of mounting options
Five band 3G HSPA (High Speed Packet Access)
USB 2.0 compatible
Embedded TCP/IP stack
Ethernet interface
FOTA configurable
Programmable hardware watchdog
SMS text and PDU mode support
Quad Band GPRS/EDGE Class 12
Advanced Temperature Management
RLS Monitoring
Supply Voltage Range : 8 V to 30 V
Dimensions : 115 mm x 86 mm x 26 mm
Operating Temperature : -30°C to +65°C

GSM/GPRS (Mobile Communications) - Enclosed

Техническая спецификация
pdfEHS6 Terminal
pdfJava overview
pdfSecurity in M2M Communication
Высота:
26мм
Длина:
115мм
Поддерживаемые диапазоны частот:
1800 MHz, 1900 MHz, 2100 MHz, 800 MHz, 850 MHz, 900MHz
Поддерживаемые интерфейсы шины:
I2C, SPI
Рабочая температура - максимальная:
+65 °C
Рабочая температура - минимальная:
-30 °C
Размеры:
115 x 86 x 26мм
Тип компонента:
Модуль
Ширина:
86мм
