SSF26X100, Cynergy3 Vertical Float Switch, Stainless Steel 316L, SPNO, Float, 1m, 300V, 300V

8668128
Номер производителя: SSF26X100Производитель: Cynergy3
Цена за шт.
72147.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

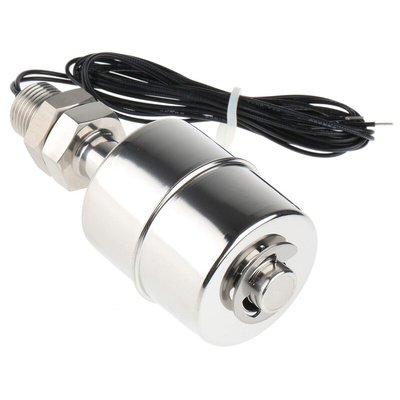

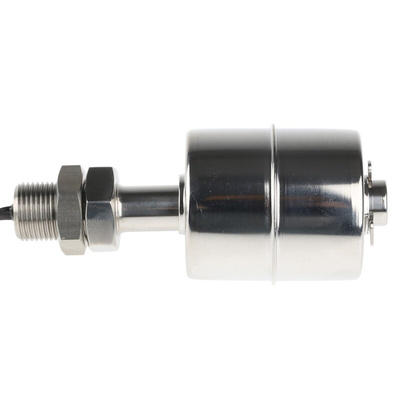

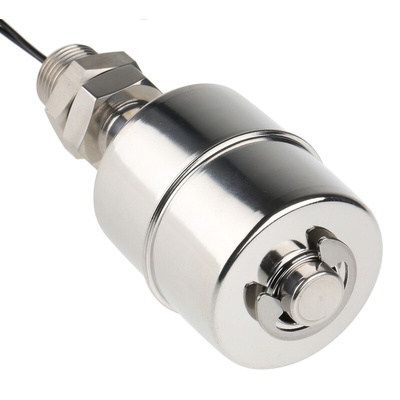

Cynergy3 Float Switch

The Cynergy3 SSF26 series float switch is a vertical mount type and has SPNO output configuration. This float switch has a stainless steel 316L body. It has a maximum operating pressure of 10bar. The switch is mounting on the top or the bottom of the tank from the inside. Hence, it requires access to the inside of the tank. The switch action may be reversed by removing the float, inverting it and then refitting it to the stem.
Warning:
The cable entry point must not under any circumstances be submerged
The horizontal switches should be fitted through the wall of a tank so that the cable is on the outside
The vertical type mounting thread and cable entry must be above the highest level of the liquid

Features and Benefits

Minimum fluid SG is 0.65
Maximum switching power 50VA
Cable length is standard 1m
Mounting thread is 3/8in BSP
User configurable N/O (make on the rise) or N/C (make on fall)
Cable size is 17/0.10 - AWG22
Maximum operating temperature is 200°C
Short reach, miniature switch

Certifications

ISO 9001

Техническая спецификация
pdfDatasheet
Выходное переключение:
SPNO
Кабель - длина:
Корпус - материал:
Нержавеющая сталь 316L
Максимальное давление:
10бар
Максимальное напряжение переменного тока:
300В
Максимальное напряжение постоянного тока:
300В
Максимальный ток:
500 мА
Номинал тока:
500 мА
Рабочая температура - максимальная:
+200°C
Серия:
SSF26
Тип девайса:
Float
Тип монтажа:
Вертикальный
