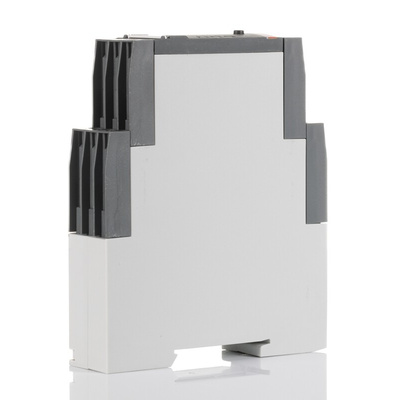

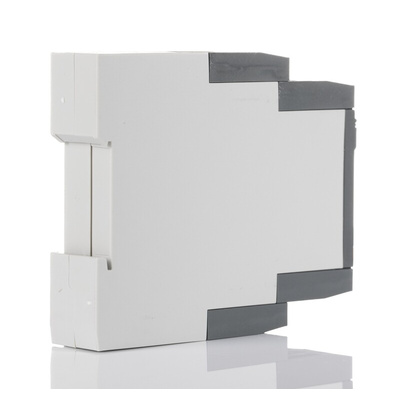

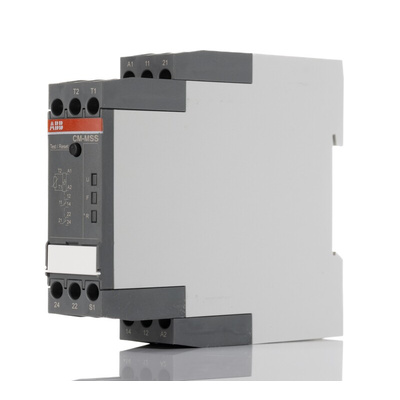

1SVR730700R0200, ABB Temperature Monitoring Relay With DPDT Contacts, Реле контроля

8765014
Номер производителя: 1SVR730700R0200Производитель: ABB
Цена за шт.
21273.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

CM-MSS Thermistor Motor Protection Relays

Heavy duty starting
Increased switching frequency
High ambient temperature
Insufficient cooling
Break operation
Unbalance

The CM range of thermistor motor protection relays are used to control motors equipped with PTC temperature sensors. The PTC temperature sensors are incorporated in the motor windings to measure the motor heating. This enables direct control and evaluation of the following operating conditions:

Main features include:
Dynamic interrupted wire detection
Wide control supply voltage rang 24-240 V AC/DC
Short circuit monitoring of the sensor circuit
Non-volatile fault storage
Remote reset
Screw connection technology or Easy Connect Technology available

Single Sensor Input Version
Wire Break Detection

Approvals

Some products also have the ATEX approval for the use in hazardous areas.

Техническая спецификация
pdfThermistor Motor Protection Relay Data Sheet
pdfSelection Table
Время задержки:
<100мс
Высота:
85.6мм
Диапазон рабочих температур:
-25 → +60°C
Диапазон тока:
Maximum of 3.7mA
Длина:
103.7мм
Количество полюсов:
1
Конфигурация контактов:
DPDT
Программы мониторинга:
Температура
Рабочая температура - максимальная:
+60°C
Рабочая температура - минимальная:
-25°C
Размеры:
103.7 x 22.5 x 85.6mm
Серия:
CM-MSS
Специальные функции:
Fail-Safe, Inbuilt PTC Sensor, Insufficient Cooling Protection, Manual & Automatic Reset, Non-Volatile Fault Storage, One Measuring Circuit, Over Heating Protection, Over Load Protection, Remote Reset, Short-Circuit Monitoring of the Sensor Circuit,
Тип клеммы:
Винт
Чувствительность температурная:
Заброс температуры, Температура обмотки
Ширина:
22.5мм
