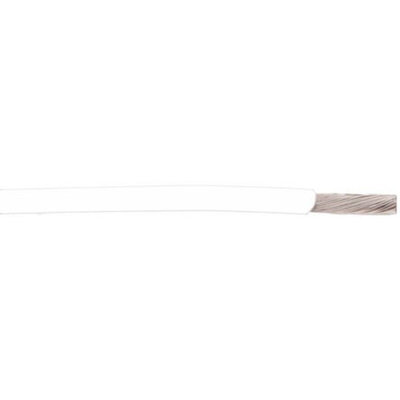

2840/7 WH005, Alpha Wire High Temperature Wire 0.03 mm² CSA, White 30.5m Reel, 2840 Series, Провод

8788212
Номер производителя: 2840/7 WH005Производитель: Alpha Wire
Цена за 1 катушку (30 метров)
14022.00 руб. (С НДС) *
Количество 5+ 10+
Цена 13392.00 руб. 12759.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Alpha Wire PTFE Hook-Up Wire

Hook up wire is a single insulated conductor wire that can be used in electronics for low voltage and low current applications. This hook up wire is made from PTFE which can deal with high temperatures, has excellent electrical properties and is resistant to many chemicals and solvents. Hook up wire is frequently used in control panels, automotive, meters, ovens, internal wiring of computers, electronic equipment, business machines and appliances. This type of hook up wire from Alpha Wire can be used in military applications.

Features and Benefits

PTFE insulation
Stranded or solid silver-plated copper conductor
Can withstand high temperatures
Chemically inert: Chemical and solvent resistance
Excellent electrical properties

What is Mil-spec?

Mil-spec is a US defence standard used to help achieve standardisation objectives by the U.S. department of defence. Suitable for demanding electronic military applications. Military hook-up wire is expected to work under extreme conditions such as, temperature, shock and exposure to chemicals.

Product Application Information

Control cabinets in protected environments
Machine tool on the factory floor
High temperature oven
Off-road construction equipment
Transformers
Switchboard
Military applications

Standards

MIL-DTL-16878/4 (Type E), UL AWM 1213, NEMA HP3

Техническая спецификация
pdfHook Up Wire Data Sheet
pdfHook-up Wire 250V PTFE Data Sheet
pdfDatasheet
pdfCables Selection Guide
Американский размер проводов:
32
Внешний диаметр:
0.56мм
Встречающиеся стандарты:
California Proposition 65, EU Directive 2011/65/EU (RoHS2), MIL-DTL-16878/6 (Type ET), MIL-W-16878E-TYPE ET, NEMA HP3-ETXBAB, REACH Regulation (EC 1907/2006), RoHS Compliant, UL VW-1
Диапазон рабочих температур:
-60 → +200 °C
Длина:
30.5м
Жилы:
14793
Кабельные формы:
Multicore
Количество нитей:
7
Материал изоляции:
PTFE
Материал проводника:
Медь
Номинальное напряжение:
250 В
Площадь поперечного сечения:
0.03 мм²
Рабочая температура - максимальная:
200°C
Рабочая температура - минимальная:
-60°C
Размеры нитей:
40
Серия:
2840
Стиль провода:
MIL-W-16878
Тип экрана:
Неэкранированный
Толщина изоляции стен:
0.15мм
Устойчивый к:
Chemicals, Oils, Solvents
Цвет оболочки:
Белый
