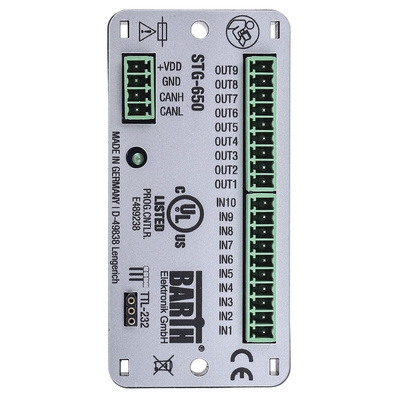

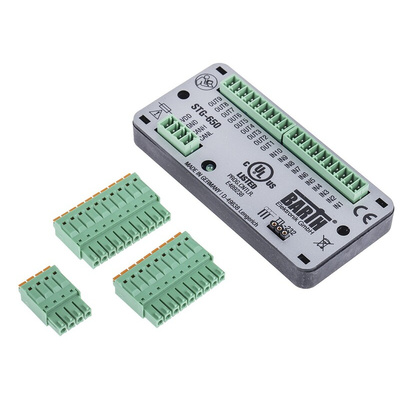

STG-650 CAN - Mini-PLC
The STG-650 CAN is a highly integrated programmable logic controller providing outstanding graphical programming capability at lowest current consumption and small form factor.
With it is cutting edge features the STG-650 CAN opens up completely new application fields with space restrictions and high integration level requirements.
The CAN bus allows the user to connect a variety of network components to the Mini-PLC, for example: displays, stepper motors or CAN sensors.
The STG-650 CAN does not need any peripheral components to operate. Both inputs and outputs features highly integrated and rugged protection circuits to operate the Mini-PLC in harsh environment.
Due to it is extremely low current consumption and wide operation voltage range the STG-650 CAN is well suitable for 12 and 24 V battery-powered systems.
These outstanding features open up a variety of application fields in industrial, automotive and maritime technology.
Small and universal Logic Controller
8 analog Inputs 0-30 Vdc
2 digital Inputs up to 10 kHz
8 Power Outputs up to 1.5 A
1 Power PWM Output 2 A/0-10 kHz
Reliable Solid-State Outputs
Programmable Status LED
1 CAN Interface
TTL-232/USB Connection to PC
Intuitive graphical Programming Capability
Wide Operating Voltage Range 7-32 Vdc
Ultra flat Housing, Height 10 mm
Vibration resistant and rugged Sealing
Very low Current Consumption
Also available as a:
- STA-650 CAN Starter Kit, stock no. 885-0894
- STG-600 Controller, stock no. 864-4538
- STA-600 Starter Kit, stock no. 864-4541
Light and Show Technology
The software is available as a free online download:
RS OUR OFFER - BARTH MINI-PLC
Find out more on DESIGNSPARK
Barth Mini-PLC -Brochure
Barth Mini-PLC - Product Overview
Find out more on SOFTWARE miCon-L
STG-650 CAN Mini-PLC - Data Sheet_DE_EN
