1123490000, Weidmüller TRS Series , 24V DPDT Interface Relay Module, Screw Terminal , DIN Rail

8928808
Номер производителя: 1123490000Производитель: Weidmüller
Цена за шт.
5724.00 руб. (С НДС) *
Количество 5+ 10+
Цена 5547.00 руб. 5370.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

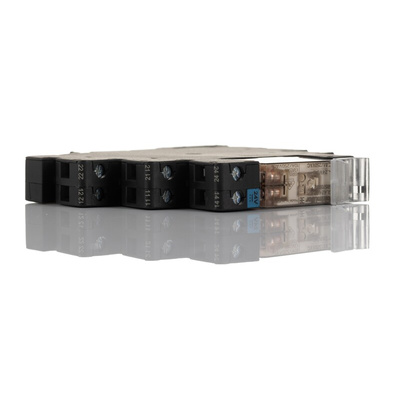

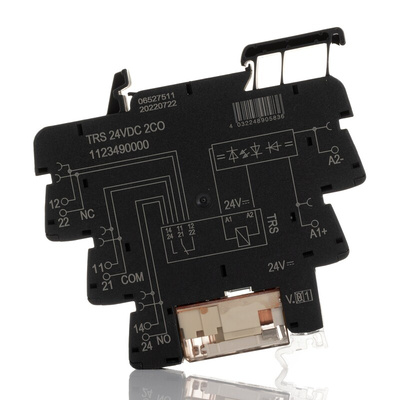

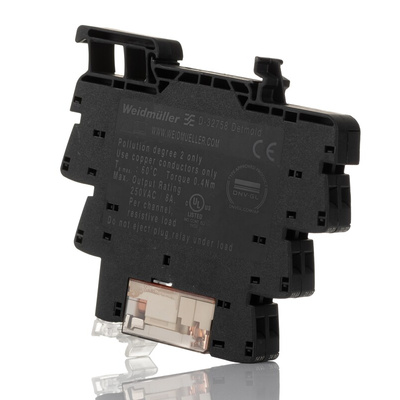

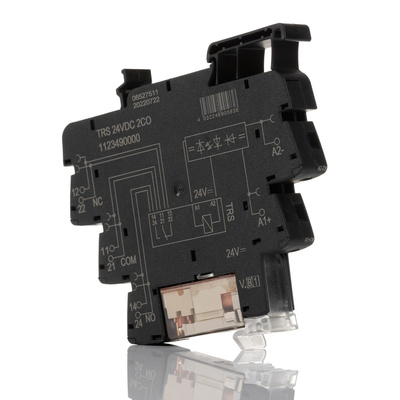

Weidmuller Interface Relay Module

The Weidmuller interface relay module is a compact electromechanical device equipped with a 24VDC coil and 2CO switching contact configuration. This device has many approvals and hence, it can be used for many applications around the world. It also offers a high-density solution for smaller electrical cabinets and other industrial applications thus, optimising your panel installation. This electromechanical relay module has a small footprint that makes it ideal for applications where space-saving is essential.

Features and Benefits

Relay output current is 8A
AgNi contact along with optionally hard gold-plating available
The operating temperature ranges between -40°C and 60°C
It has various protective circuits in the input (free-wheel diode, RC element)
Screw connection
Din rail type mount
Illuminated ejection lever

Applications

Industrial process control
Motor control applications
Electrical isolation
Signal matching between electronic controls

Certifications

IP20 rated protection
CE certified
UL approved
EAC certified
cULus certified
47053-12
EN 50178
EN 55011
EN 61000-6-1
EN 61000-6-2
EN 61000-6-4

Техническая спецификация
pdf1123490000 Data Sheet
Время включения:
<11мс
Время выключения:
<10мс
Встречающиеся стандарты:
CE, CULus, EAC, RoHS Compliant
Входной ток:
20мА
Высота:
88мм
Глубина:
12.8мм
Диапазон рабочих температур:
-40 → +60°C
Длина:
90мм
Катушка напряжение:
24В
Классификация коммутационных реле:
Универсальное реле
Количество полюсов:
2
Конфигурация контактов:
DPDT
Материал контактов:
Серебряный сплав
Рабочая температура - максимальная:
+60°C
Рабочая температура - минимальная:
-40°C
Размеры:
90 x 12.8 x 88мм
Серия:
TRS
Специальные функции:
Illuminated Ejection Lever, Various Protective Circuits in the Input
Тип клеммы:
Винт
Тип монтажа:
DIN Rail
