2904951, Phoenix Contact 24 V dc Safety Relay - Single Channel With 1 Safety Contact PSRmini Range with 1 Auxiliary Contact,, Реле безопасности

8937720
Номер производителя: 2904951Производитель: Phoenix Contact
Цена за шт.
40287.00 руб. (С НДС) *
Количество 5+
Цена 38652.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Phoenix Contact PSRmini Safety Relay

The PSRmini safety relays from Phoenix Contact are the most narrow safety relay on the market to provide proven safety thanks to force-guided contacts. The Innovative relay technology offers maximum safety and high switching loads up to 6 A.
The PSR-MS with a width of just 6 mm comes with 1 to 2 enabling paths, and the PSR-MC with a width of 12 mm comes with 2 to 3 enabling paths. They are available as a single or dual channel device suitable for monitoring emergency stops, safety doors and light curtains - as well as to control actuators.

Features and Benefits

• Compatible with all important signal transmitters and safety-relevant systems
• Screw and push-in spring connection
• Automatic reset, Automatic/Manual reset, Automatic/Manual/Monitored reset, Manual/Monitored reset options available
• Up to 70% space saved
• Easy and quick diagnosis given means shorter downtime

Standards

EN ISO 13849-1, EN 62061, IEC 61508.

Approvals

CE, UL, cULus, TUV.

PSR-MS25-1NO-1DO-24DC-SC

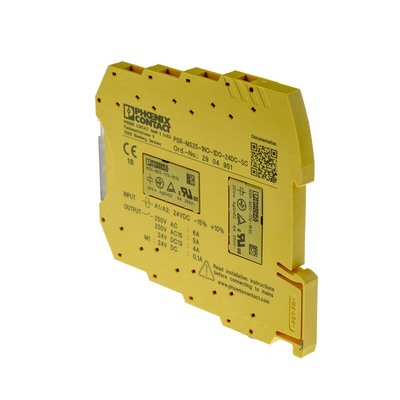

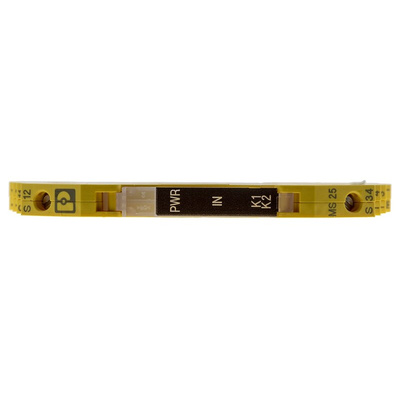

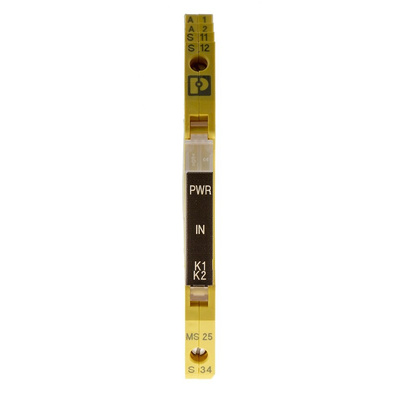

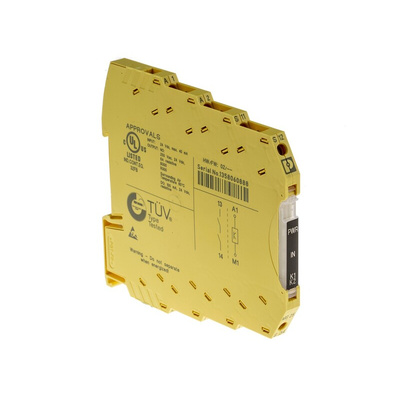

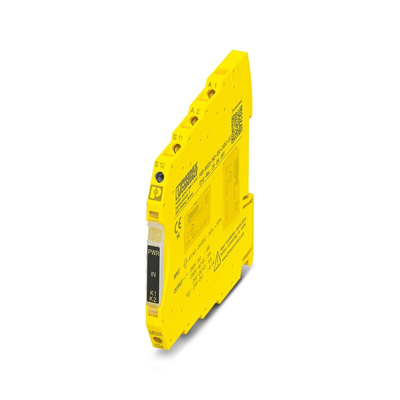

Phoenix Contact 2904951 highly compact PSRmini safety relay has a width of only 6.8 mm, screw connections, 1 digital signal output and 1 enabling current paths.

Техническая спецификация
pdfBrochure
pdfDeclaration of Conformity
pdfEC Certification
pdfDatasheet
Безопасные контакты:
1
Вспомогательные контакты:
1
Встречающиеся стандарты:
cUL, cULus, EAC, Functional Safety, UL
Глубина:
102.5мм
Диапазон:
PSRmini
Длина:
93.1мм
Категория безопасности:
1
Количество каналов:
1
Метод сброса:
Ручной
Напряжение питания:
24 В пост. тока
Тип клеммы:
Винт
Функция:
Аварийная остановка, Защитный выключатель/блокировка
Ширина:
6.8мм
