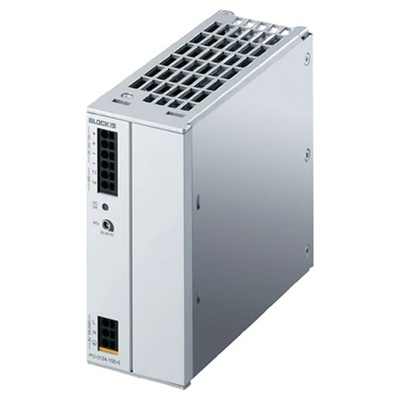

PC-0124-050-0, Block PC DIN Rail Power Supply with Fast Tripping of Standard Bi-Metal Circuit Breakers, Push-In Terminals, Stabilised, Блок питания

8937856
Номер производителя: PC-0124-050-0Производитель: Block
Цена за шт.
46428.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Power Compact Series

Power Compact combines the basic functionality of an economic switched mode power supply with key additional features to ensure high system availability.
These power supply units are suitable for a highly diverse range of applications in solar, measurement and control technology and they really come into their own in industrial and building automation.
The devices cover the average power requirement from 120 W to 480 W.
The output voltage can be set easily using the rotary potentiometer on the front of the housing. The robust DIN rail fastening method and push-in connection terminals enable fast and secure mounting.

Advantages

Stabilised and adjustable output voltage
Fast tripping of standard bi-metal circuit breakers
DC OK signal contact
Parallel operation
Push-in terminals
Robust DIN rail mounting
Resistant to transient over voltages up to 4 kV
Approvals cURus, cULus, GL (Lloyds Registered)

Техническая спецификация
pdfPC-0124-050-0 Datasheet
Встречающиеся стандарты:
cULus, cURus, EN, GL, UL, UL/CSA
Входное напряжение:
85 → 264В перем. тока
Входное напряжение переменного или постоянного тока:
Переменный ток, Постоянный ток
Высота:
127мм
Выходное напряжение переменного или постоянного тока:
Постоянный ток
Выходной ток:
5A
Глубина:
126мм
Диапазон регулировки выходного напряжения:
23.0 to 28.5V
Количество выходов:
1
Максимальная температура:
+70°C
Минимальная температура:
-25°C
Мощность номинальная:
120Вт
Напряжение выходное:
24В пост. тока
Пульсации и шум:
30мВ Pk-Pk
Серия:
PC
Специальные функции:
Fast Tripping of Standard Bi-Metal Circuit Breakers, Push-In Terminals, Stabilised and Adjustable Output Voltage
Тип монтажа:
Крепление на DIN рейку
Электрическая фаза:
1
