ST7200USBM, Startech 7x USB A Port Hub, USB 2.0 - Terminal Connector Powered

ST7200USBM 7 Port Industrial USB 3.0 Hub

This sturdy, TAA complaint, industrial grade USB 2.0 hub can be wall mounted or installed onto a DIN rail for convenient access to its 7 female USB 2.0 ports, providing a work area, server room, or industrial environment with USB 2.0 connectivity.

With support for Hi-Speed USB 2.0 data transfer rates of up to 480 Mbps, this 7 port USB hub is backwards compatible with USB 1.1 specifications and can be powered through the host USB bus, or self powered using a three wire terminal block connector (7-24V).

Features & Benefits

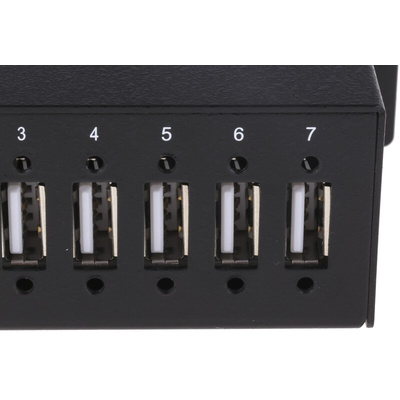

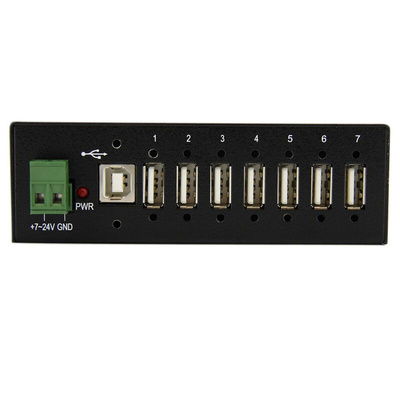

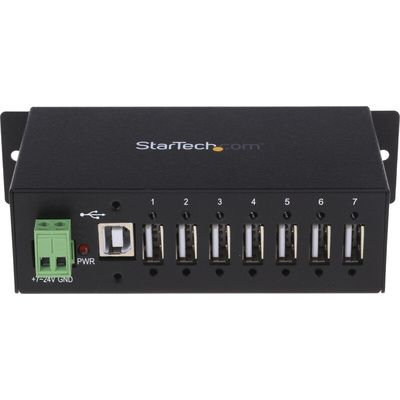

• Provides 7 USB 2.0 ports

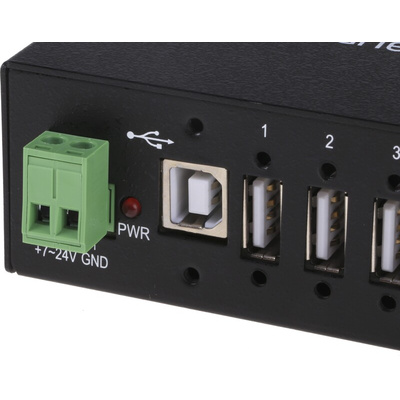

• USB bus powered or external terminal block with support for 7 ∼ 24VDC input

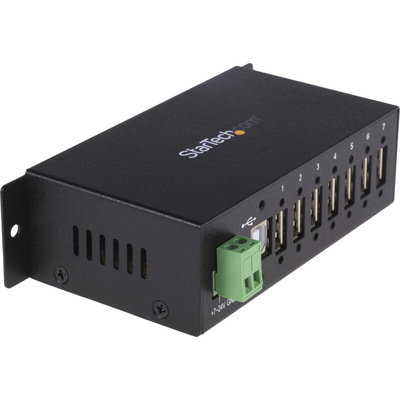

• Compact and lightweight design with surface or DIN rail mounting options

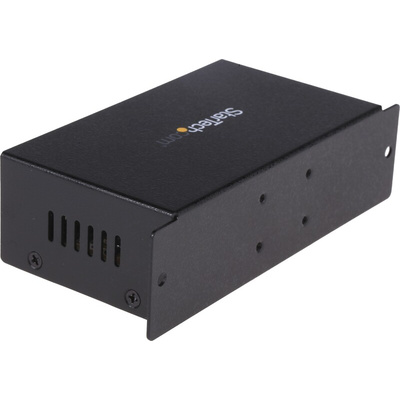

• Industrial strength, all-metal enclosure
• High Speed USB 2.0 compliant, with transfer rates up to 480 Mbps
• 15KV ESD protection
• Plug-and-Play and Hot-Swap compatible
• Includes a 2 meter screw-locking USB cableA single USB host connection provides 7 additional USB ports with per port surge protection
• Surface and DIN mounting options and terminal block power input to suit a wide range of industrial applications
• Backed by a StarTech.com 2-year warranty and free lifetime technical support

Application

• Add additional, easy to access USB ports to rack mounted equipment
• Install a USB hub that can be securely mounted to a surface or inside an equipment rack DIN rail

What’s in the box?

• USB 2.0 Hub
• DIN rail mounting bracket
• 6 ft [1.8 m] USB-B w/screw lock to USB-A cable
• Screw kit
• Instruction Manual

Instruction Manual

ST7200USBM Data Sheet
