FLUKE-1738/EUS, Fluke 1738 Energy Monitor & Logger for Current, Current Harmonic, Frequency, TDD, THD Current, THD Voltage, Unbalance,, Анализатор

Fluke Power Logger

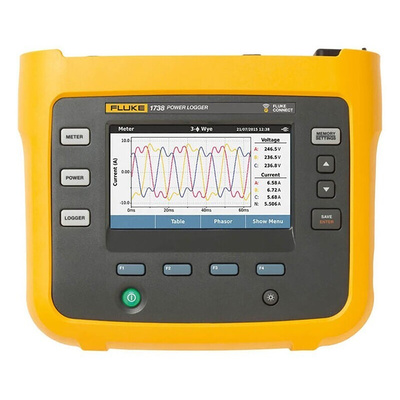

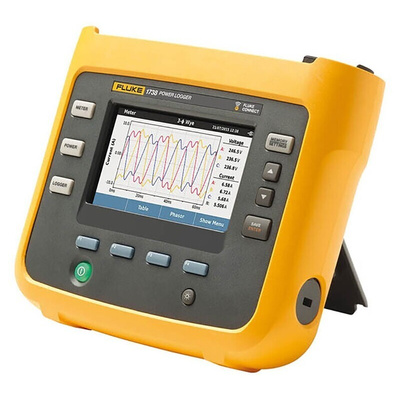

The Fluke 1738 three-phase power logger EU/US is an ideal device for conducting basic energy and power quality studies. The Fluke 1738 built with Fluke Connect mobile app and desktop software compatibility gives you the data you need to make critical power quality and energy decisions in real-time. This device automatically captures and logS voltage, current, power, harmonics and associated power quality values, and captures dips, swells, and inrush currents with event waveform snapshots, along with high-resolution RMS profiles.
Note:
Critical safety alert- Improper usage of the test lead set, 3PHVL-1730 or 3PHVL-1735-5M 'voltage test lead, three-phase + N', included with the 173x series, 174x series power quality loggers and 3540FC power monitor, may potentially expose the users to hazardous conditions, posing the risk of serious injury or death.
Inclusions:
Fluke 1738, power supply, voltage test leads, alligator clips (4x), 12 in 1,500A flexible current probe (4x), soft case, energy analyse plus software, Wi-Fi adapter, line cords, colour coding set, and documentation on a USB flash drive.

Features and Benefits

Records waveform snapshots and RMS profile
Includes Fluke MP1 magnetic probe and Fluke 173x hanging kit
Colour LCD display: 4.3in active matrix TFT, 480px x 272px, resistive touch panel
Voltage range: up to 1000V
Current range: 4A to 6000A
Frequency: 42.5 to 69Hz
Comprehensive logging
Power instrument directly from the measured circuit
Highest safety rating in the industry: 600 V CAT IV/1000 V CAT III rated for use at the service entrance and downstream

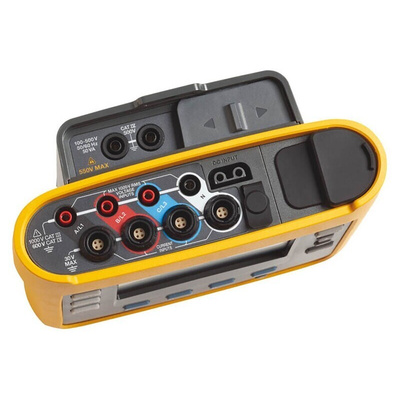

Interfaces: USB-A, Wi-Fi, Bluetooth, USB-mini
Convenient instrument powering
Energy analyse plus application software

Fluke 1736 and 1738 Three-Phase Power Loggers

User Manual

Application Note 1

Application Note 2

SAFETY ALERT NOTIFICATION

Contains SVHC - 1,3-propanesultone - CAS No. 1120-71-4
