Quectel L80-M39 GPS Receiver

Quectel L80-M39 GPS POT Module

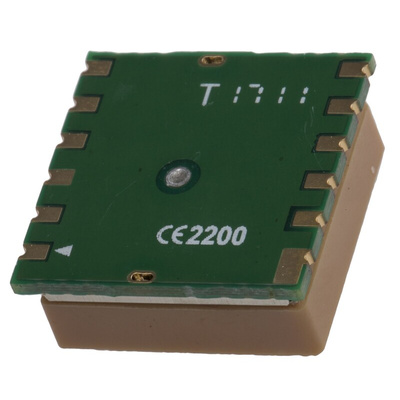

The Quectel L80-M39 is a GPS POT (Patch on Top) module. This is a GPS module and integrated patch antenna within a really compact package. It’s the perfect module for integrating into the smallest devices to enable acquisition and tracking functionality. The L80-M39 also offers automatic antenna detection and short circuit protection.
The L80-M39 is ideal for portable devices, automotive, personal tracking and security. It can even be used to automatically predict orbits.

• Compact package
• Embedded patch antenna
• High performance
• High precision
• High sensitivity: -165 dBm (tracking)
• Low power consumption
• 66 acquisition channels
• 22 tracking channels
• EASY™ AGPS Technology (Embedded Assist System)
• AlwaysLocate™ Technology

What navigation systems does it cover?
GPS and QZSS

Can I switch antennas?
Yes the L80-M39 offers and automatic antenna switching function. This means you can switch between the integrated patch antenna and an external antenna, and the L80-M39 will carry on positioning while it switches.

How big is it?
Embedded patch antenna: 15 x 15 x 4 mm
Module: 16 x 16 x 6.45 mm

What is GPS?
GPS stands for Global Positioning Sytem and is a navigation system that utilises satellites. GPS is able to provide information on locations, velocity and time. It is a popular navigational system used in cars, trucks, boats and aeroplanes.

Versions Available:
908-4085 - box of 1
170-9177 - box of 25
