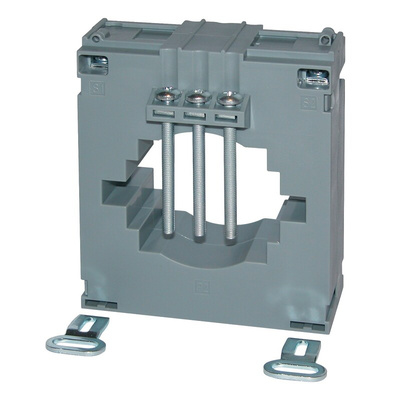

20-5-K8, HOBUT Series 20, Current Transformer, , 60mm diameter, Трансформатор тока

Compact Busbar/Base Mounting Current Transformers- Series 20

A range of compact, moulded case current transformers suitable for primary currents from 400A to 2000A with built-in sealable terminal covers. The current transformers are used to transform various primary currents into 5A or 1A standard secondary using 60 x 30 mm or 80 x 10 mm busbars. Alternatively you can also use cables up to 60 mm diameter.

• Built-in sealable terminal covers
• Mounting feet supplied
• Narrow width- 100 mm
• Wide range of primary currents
• Rated system voltage 0.72/3kV
• Continuous current 1.2 x rated current
• Conforms to IEC185, BS 7626, BSEN 60044-1and IEC 60044-1
