RS PRO Pressure Mat Surface Mount 250mA, 25V dc

RS Pro Pressure Mat 4 Wire Out

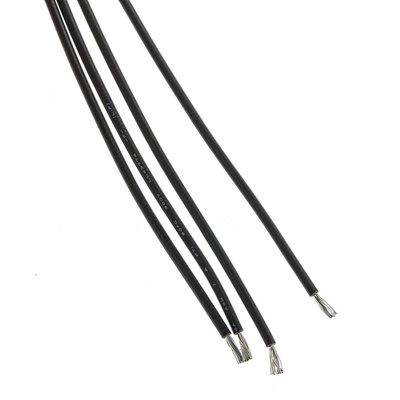

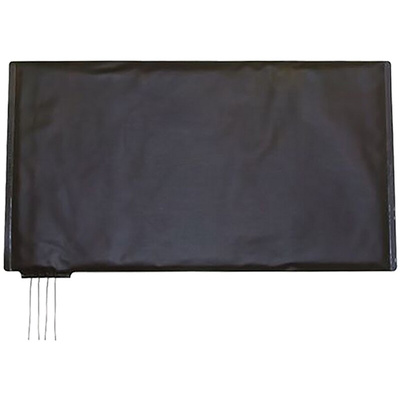

Floor pressure-pad security switch manufactured from Seem welded black PVC. A black PVC-covered 16/0.2 mm lead-out wires, 300 mm long. Two wires comprise the N/O SPST circuit, whilst two others form a continuous loop. The switch circuit pair has 5 mm pre-stripped ends. The small pressure pad is recommended for use under the stair carpet (RS 918-4756) and the large type is suitable for use under carpets adjacent to doors and windows.

Normally open
25Kg over 50mm² actuation pressure
Maximum switching voltage 25 V/DC
Maximum switching current 0.25 Amps DC (Resistive)
Carry current Max 0.25 Amps DC (Resistive)
Maximum power 10 W/VA
Ingress protection IP64 (Not waterproof)
Contact resistance 1 Ohm (typical)
Operating temperature -10° to +70° C
Seem welded PVC material
0.22mm² black PVC insulated cable

Note

Not to be used in machine control safety applications.
