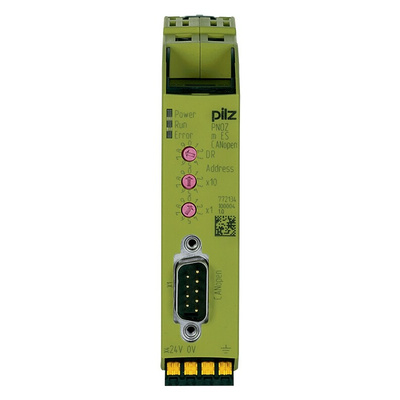

772134, Pilz PNOZmulti 2 PNOZ m ES CANopen Communication Module, 24 V dc, Модуль

PNOZmulti 2 Communication/Fieldbus Module CANopen

The PNOZ m ES CANopen expansion module connects to a base unit from the PNOZmulti 2 configurable control system.

Features and Benefits

Can be configured in the PNOZmulti Configurator
Connection for CANopen
Station addresses from 0 ... 99, selected via rotary switch
Transmission rate selected via rotary switch (1 Mbps/s, 10 kbit/s, 125 kbit/s, 20 kbit/s, 250 kbit/s, 50 kbit/s, 500 kbit/s, 800 kbit/s)
Status indicators for communication with CANopen and for errors
128 virtual inputs and outputs on the control system PNOZmulti 2 can be defined in the PNOZmulti Configurator for communication with the fieldbus CANopen
Maximum 1 PNOZ m ES CANopen can be connected to the base unit
Connection to fieldbus via female9-pin D-Sub connector

Approvals

CE, cULus Listed, TÜV, BG, CCC.

Supplied with

Screw terminals.
