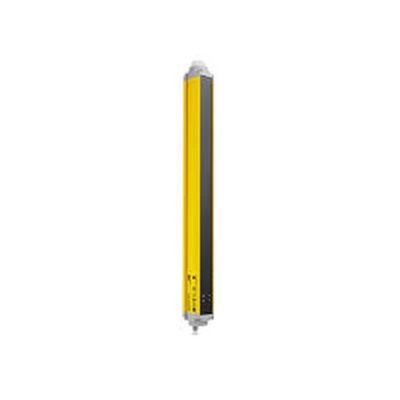

2TLA022307R0100, ABB Orion3 Light Curtain Sender & Receiver, 3 Beam, 8m Max Range, Барьер безопасности

9209631
Номер производителя: 2TLA022307R0100Производитель: ABB
Цена за шт.
433218.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

ABB Orion3 Light Grids

The Orion3 light grids from ABB combine both the transmitter and receiver in a single unit, called the active unit. The beams are then reflected using a mirror called the passive unit, which reduces cabling because it is not connected. The Orion3 is available in two options, a base model and an extended model.

Features and Benefits

No more functions or settings than necessary
A local reset button can be connected directly to the light grid: no need for cable between the reset button and the electrical cabinet or for an extra control module
Each light grid can monitor the actuators without any extra control module (EDM function)
Less cabling because only the active unit is connected
Alignment help and a wide angle within the limits of a Type 4 device facilitate alignment
Rotation brackets simplify alignment too
M12 connectors speed up cabling
Since the alignment level is displayed on the unit, the alignment can be improved before an unwanted stop occurs
Extensive error indication reduces troubleshooting time
Muting sensors are connected directly to the extended model, with no need for a remote muting module
Body detection, 2 to 4 beams
Up to 8 m operating distance
Sturdy profile

Applications

For body detection
When power is available on only one side
When a sturdy profile is necessary

Note

Both the base and extended models provide detection, local reset and external device monitoring (EDM), but the extended model also provides muting.

Standards

EN ISO 13849-1:2008 PL e, Cat 4
EN 61508-1..4:2010 SIL3
EN 62061:2005/A1:2013 SIL CL 3

Approvals

CE, cULus, TUV.

Perimeter and Access Guard

Техническая спецификация
pdfDeclaration of Conformity
pdfDatasheet
pdfFull Manual
pdfBrochure
pdfQuick Guide
PL EN ISO 13849-1:
e
SIL IEC 61508:
3
Высота:
56.9мм
Диаметр луча:
42мм
Диапазон:
Orion3
Длина:
906.35мм
Защитная высота:
800мм
Количество балок:
3
Максимальное время отклика:
12 мс
Максимальное расстояние сканирования:
Минимальное расстояние сканирования:
0.5м
Особенности:
3 Beams, Active and Passive Unit, Body Detection, Local Reset and EDM, Muting Function, Sturdy Profile, Type 4, Upto 8 m Operating Distance
Применение:
Body
Размеры:
906.35 x 52 x 56.9 мм
Тип безопасности:
4
Тип клеммы:
8-контактный M12 Разъем
Тип компонента:
Receiver, Sender
Ширина:
52мм
