6XV1840-2AH10, Siemens Green PVC Cat5 Cable SF/UTP, 20m Unterminated/Unterminated, Кабель

Cat5e Industrial Ethernet FC TP Standard Cable

What is a Cat5e Cable?

Cat5e Ethernet cables are one of the most popular types of network cable for connecting computers, modems, routers and other wired internet capable devices. Cat5e cable (which stands for “Cat5 Enhanced”) offers significant performance improvements over standard Cat5 Cable, including being up to ten times faster speeds.

Features and Benefits

• Connection to FastConnect products using insulation displacement technology.
• Exceeds Category 5 (Cat5e) of the international cabling standards ISO/IEC 11801 and EN 50173.
• Double shielding provides high interference immunity.
• Printed meter markings provide easy length measurement.
• Designed for fast installation.

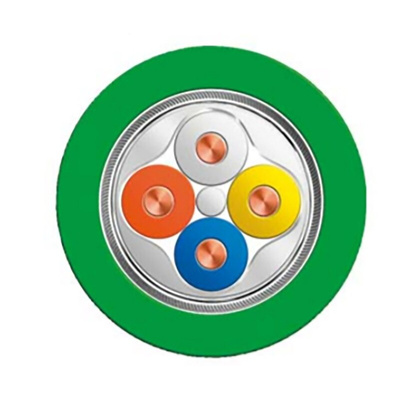

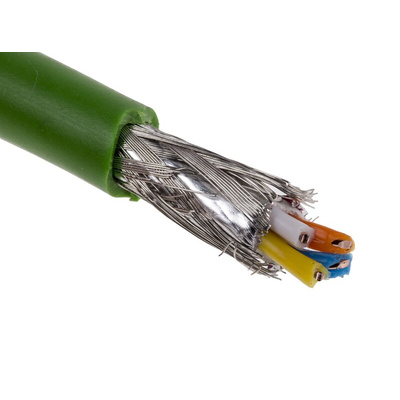

• Shield design: Overlapped aluminium clad foil, sheathed in a braided screen of tin-plated copper wires.
• Mineral oil resistant to IEC 60811-2-1.
• Conditional resistance to grease and water.
• Radiological resistant.
• Reliable in harsh environments.
• Consistent and reliable performance which offers maximum uptime.
• Durable and hard wearing due to the moulded kink protection.
• An installation cable for connection to an FC outlet RJ-45, making it a universal application.
• Flexible and suitable for narrow bending.
• Standard bus cable.

Typical Applications

• Cat5e cables feature more stringent specifications for cross talk and system noise. These Cat5e cables are ideal for networking connections between devices. The cable is suitable for narrow bending due to its kink protection.
• These types of cables are also a perfect solution for structured building cabling.
• Cat5e cables can be used to carry telephone and video signals, in some cases more than one signal at a time.

Care Instructions

When storing your patch leads, we advise that you lightly roll your cables into a loose coil, going with the natural curve of the wire. When not in use, we suggest that the cables be stored in a protective case where dust and impurities will not get lodges into the connector ends.

Siemens 6XV1840-2AH10 Green Cat5e Ethernet Cable

This Cat5e cable by Siemens has a shield type of SF/UTP and an outer sheath material of PVC. The american wire gauge is 22 and the cross sectional area is 0.33. This Cat5e Ethernet Cable has a voltage rating of 100 V and is available 20 meters in length.
