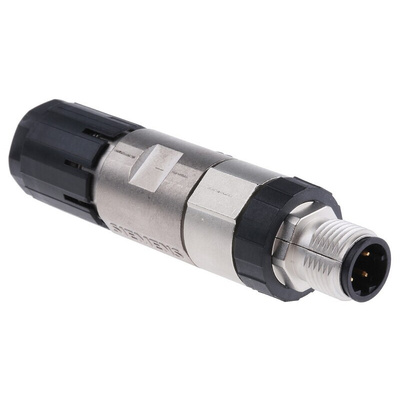

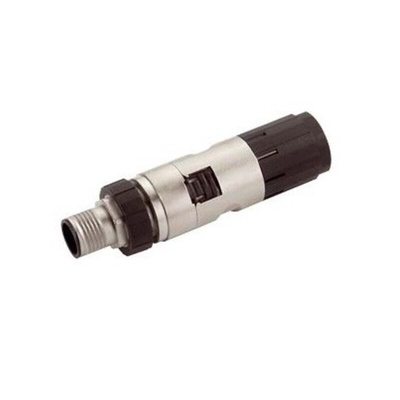

6GK1901-0DB20-6AA0, Siemens Data Acquisition Connector for Use with ET 200eco Series

Siemens Plug Connector For Use With ET 200eco Series, M12 - 6GK1901-0DB20-6AA0

Maintain optimal networking of automation components with this M12 plug connector from Siemens. It's designed to connect electrical cables to SCALANCE X208 PRO and ET 200 PRO PN Ethernet switches. The durable plug is housed in a rugged metal enclosure with an IP65 (ingress protection) rating, meaning it's protected against dust and low-pressure water jets. Integrated cut-out-and-clamp contacts allow for the secure connection of industrial Ethernet cables, while its M12 connector is suitable for network components or terminal equipment, so it's a versatile addition to your setup. Sophisticated FastConnect technology is designed to prevent installation errors, making assembly fast and simple.

• Can be re-used up to 10 times to improve network wiring efficiency
• Includes a screwed joint locking mechanism for a secure connection that won't shake loose
• Fast industrial Ethernet speed of 100Mbps (megabits per second) for high-speed data transfer

How are the individual wires of an industrial Ethernet cable assigned to the pins on this plug?

The integrated cut-and-clamp contacts are colour-coded and have a clear contact area, so you can make simple and reliable connections.

Datasheet

6GK1901-0DB20-6AA0 Datasheet
