Cosel Switching Power Supply, PBA150F-9-N, 9V dc, 16.7A, 150W, 1 Output, 120 → 370 V dc, 85 → 264 V ac, Источник питания

Cosel Embedded Switch Mode Power Supply

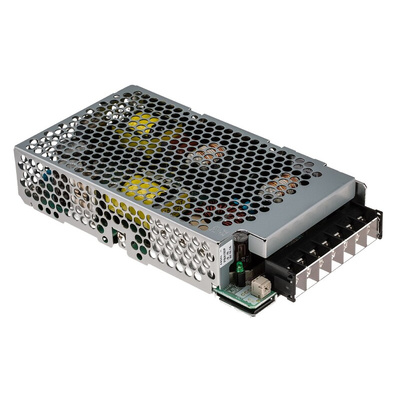

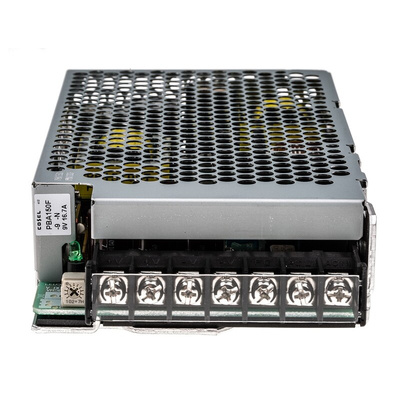

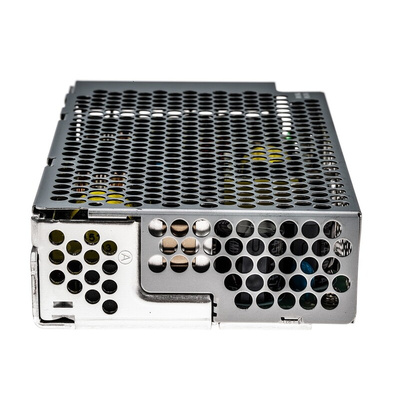

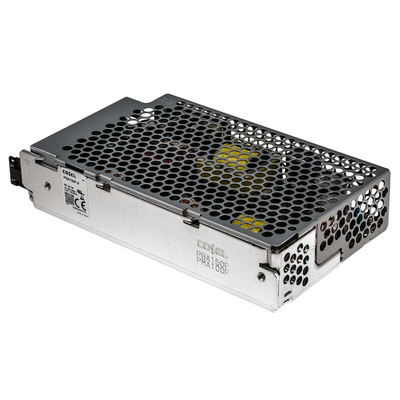

The Cosel PBA series 150W single output AC to DC embedded switch-mode power supply has an output current of 16.7A at 9VDC. This device is 35% to 65% smaller in volume than the conventional products of the same type. It has a universal input supply voltage rating ranging from 85VAC to 264VAC/120VDC to 370VDC.
Note:
All models include a ventilated cover
Carry out the necessary testing on the end equipment with the power supply installed as per required EMC/EMI regulations

Features and Benefits

Lightweight and incredibly compact
Overcurrent and overvoltage protection
Harmonic attenuator
Convection cooled
Increased efficiency due to synchronous rectification technology
They also feature remote ON/OFF
Fan alarm
Remote sensing among other functions
Enclosed package type
Chassis mount

Applications

Automated machinery
Semiconductor equipment

Certifications

UL60950-1 (at only AC input)
C-UL (CSA60950-1)
EN60950-1
EN50178 complies with DEN-AN
Complies with FCC Part15 class B (conducted noise)
VCCI-B
CISPR22-B
EN55011-B
EN55022-B (additional EMI/EMC filter required to meet class B for PBA1500F models)
Harmonic attenuator complies with IEC61000-3-2 (PBA10F, 15F and 30F models - not built into active filter)

PBA Series Instruction Manual

PBA Series Optional Parts

SFE_PBA-PBW_EN_Datasheet
