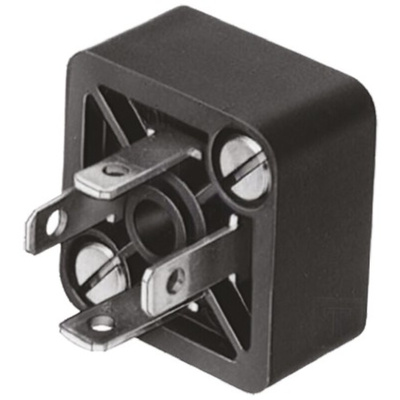

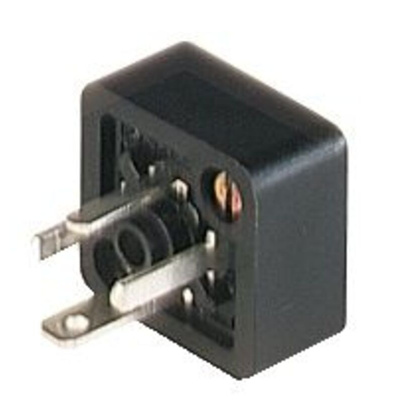

933111100 GSSNA 300, Hirschmann GSSNA 300 3P+E DIN 43650 C, Male Heavy Duty Power Connector, No, 250 V ac/dc Voltage, Разъем

Belden Hirschmann Heavy-Duty Power Connector, 6A Current Rating, Flame-Retardant - GDSN Series - 933111100 GSSNA 300

To make sure your pressure sensor stays alert, pair it with this heavy-duty power connector from Belden Hirschmann. It provides a reliable connection between your electrical supply and industrial devices such as valves and sensors, so there's minimal chance of your equipment suddenly shutting down. A tough PA-GF housing delivers high thermal resistance, so you can put this connector to the test in extreme operating temperatures ranging between -40°C and +125°C.

Features & Benefits

• Insulated, so it reduces the risk of electric shocks
• IP65-rated connection when correctly mounted and locked is dust-tight and protected against low-pressure water jets
• Highly conductive copper zinc contacts for efficient power flow

Applications

• Breweries
• Aerospace technology
• Industrial automation
• Process control

Is this heavy-duty power connector reusable?

Yes, it's conveniently reusable, as you can mate this male receptacle to a compatible female part up to 50 times.

DIN 43650C Hirschmann

A comprehensive range of connectors and plug bases typically for use with solenoid valves on pneumatic and hydraulic equipment. The inner connector can be rotated through 90° increments so the gland can be positioned in all four directions. Housing material is glass-filled nylon making them impact resistant.

Hirschmann appliance connectors feature terminals that can be screwed onto bare or ferruled conductors, or will accept crimp ring/fork terminals under the head of the screw.

Sockets L. 38mm (overall)
H 27mm (inc. gasket)
M3 retaining screw
Body section 15x15mm
Plug base 17x17mm, H 8.5mm
