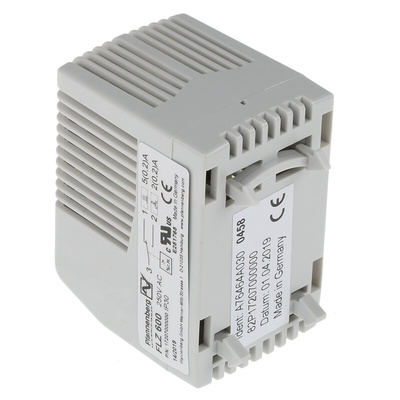

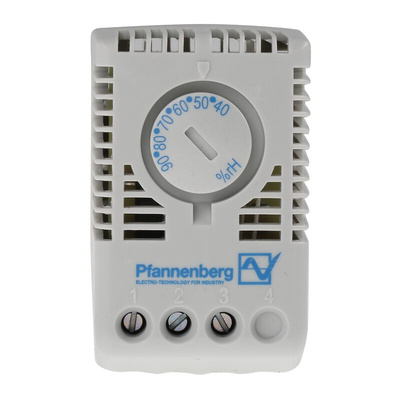

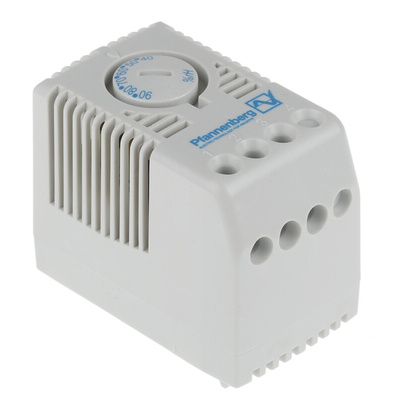

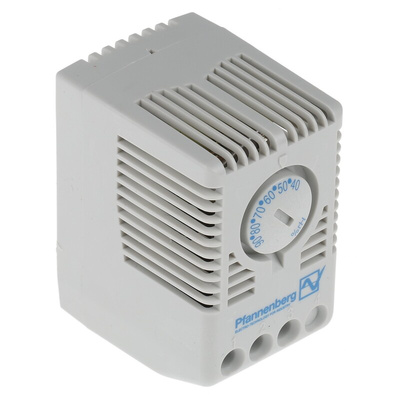

FLZ600 17207000000, Pfannenberg Enclosure Hygrostat, Adjustable, 40 → 90%RH, 230 V ac/dc, DIN Rail

Pfannenberg DIN Rail Mount Hygrostats - FLZ 600 Series

Pfannenberg FLZ 600 series DIN rail mount hygrostats activate control cabinet heaters or filterfans when a preset relative humidity is exceeded. The FLZ 600 series hygrostat unites thermostat and hygrostat in a single housing and at the same time monitors the relative humidity and temperature independent of each other.

DC max 30W
Differential gap approximately 5%
Tolerance for switching point ±4%, based on 50% rH
Polyamide band sensor
Connection 2-pole clamp 0.5-2.5mm²
Colour RAL 7035 - light grey
IP20 protection
Operating temperature 0°C to +60°C
Storage temperature -20°C to +80°C
Mounting method snap fastening for 35mm profile bars in accordance with EN 60715
