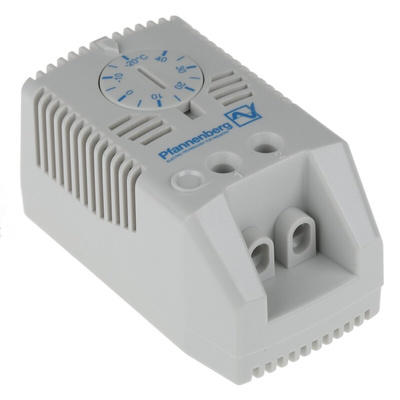

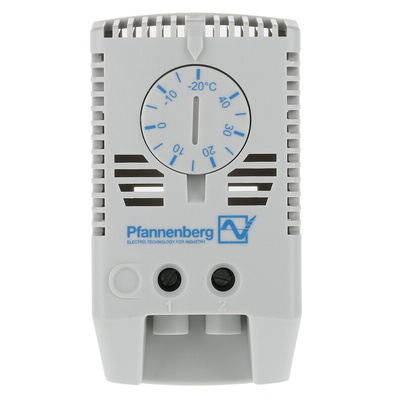

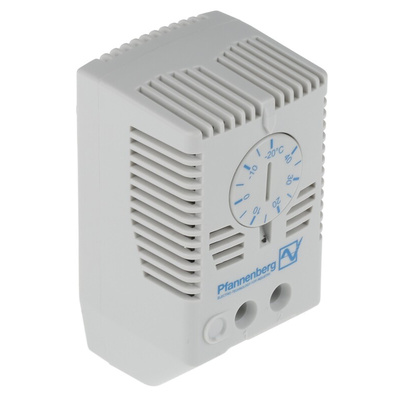

FLZ530 17121000003, Pfannenberg FLZ Enclosure Thermostat, -20 → +40 °C, Термостат

0103241
Номер производителя: FLZ530 17121000003Производитель: Pfannenberg
Цена за шт.
5163.00 руб. (С НДС) *
Количество 10+ 25+ 50+ 100+
Цена 4989.00 руб. 4731.00 руб. 4371.00 руб. 3936.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

DIN Rail Thermostats - Pfannenberg FLZ Series

When used in conjunction with a cabinet heater thermostats can be used to control the temperature inside a control cabinet. These thermostats can also be used with a filter fan to provide benefits in energy consumption, materials and time due to need-based use of the fans.

Mechanical bi-metallic thermostat for temperature in enclosures
Spring contact
DC max 30W
Connection by 0.5-2.5mm2 screw clamps
IP20 protection
Working/storage temperature range -20°C to +80°C
Mounting method is snap fastening for 35mm profile bars in accordance with EN 60715
Colour RAL 7035 - light grey

Approvals

UL (FLZ520 & FLZ530)

Техническая спецификация
pdfFLZ 510-530 THERMOSTATS Data Sheet
pdfThermostat FLZ 520/530 Instructions for Use
pdfThermostat contacts explained
Диапазон температур:
-20 → +40 °C
Конфигурация коммутатора:
Нет
Максимальная температура:
+40 °C
Минимальная температура:
-20 °C
Напряжение питания:
120 В перем. тока
Серия:
FLZ
