FLH250 17025010007, Pfannenberg Enclosure Heater, 230V ac, 250W Output, 70°C, 183.5mm x 85mm x 104mm, Обогреватель

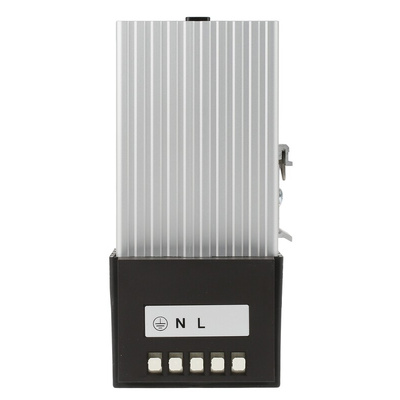

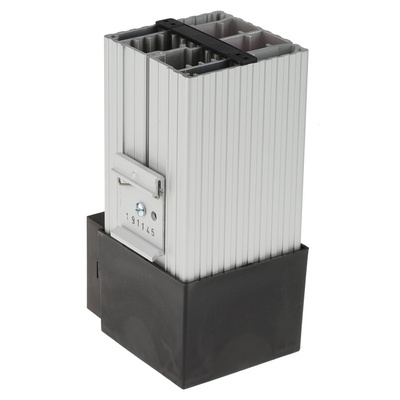

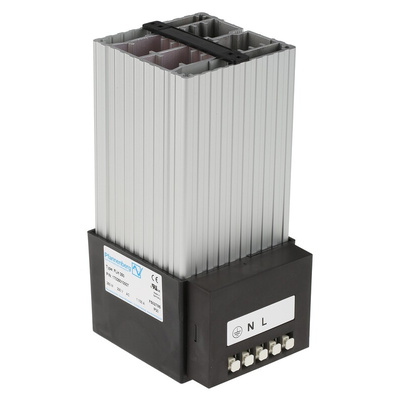

Fan Heater - Pfannenberg FLH 250

Plug-in terminal connection
Suitable for both 50Hz and 60Hz
Duty cycle 100%
Heating element is resistance type with temperature monitor
Fitting position is airflow vertical, exit at top
Airflow 50m³/h (50Hz), 61m³/h (60Hz)
Constructed from aluminium extrusion, clear anodised
Binding post connection capacity: single filament 2 x 0.5 - 2.5mm²; fine multi-filament (soldered, wire and sleeve, pin terminal) 2 x 0.5 - 1.5mm²
Snap-in mounting for 35mm DIN-rail in accordance with EN 50022
Operating temperature -20°C to +70°C
Storage temperature -40°C to +70°C
Protection rating IP44

Note

Guard (see designation +2) adds 3mm to height dimension quoted
Accessories available separately include thermostats FLZ510, FLZ520, FLZ530, hygrostat FLZ600

Approvals

UL

Operating instructions for switch cabinets heating appliances FLH

Radiant Heater and Fan Heater series FLH Data Sheet
