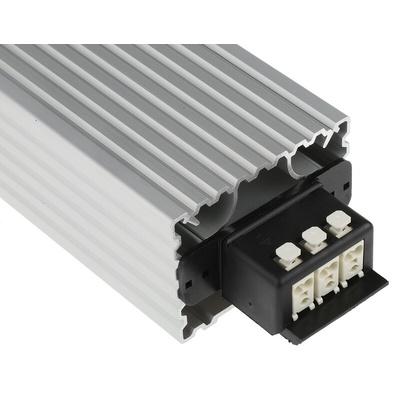

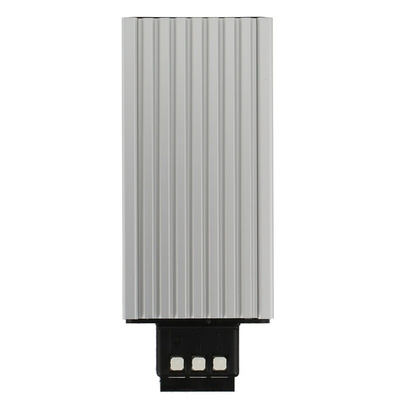

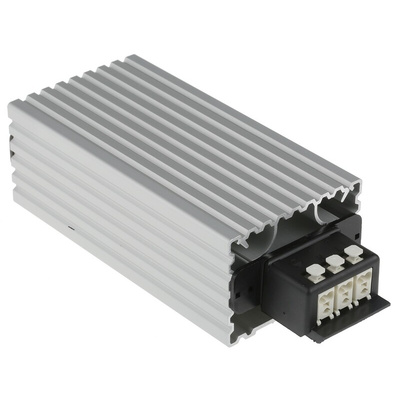

FLH100 17010005007, Pfannenberg Enclosure Heater, 110 → 250V ac, 100W Output, 100W Input, 130°C, 140mm x 70mm x 50mm, Обогреватель

Radiant Heaters - Pfannenberg FLH Series

Suitable for both 50Hz or 60Hz operation
Duty cycle 100%
Heating element is PTC (positive temperature coefficient), temperature regulating
Can be mounted in any position (vertical preferred)
Made from extruded aluminium section, clear anodised
Plug-in terminal connection
Cable connection capacity: solid 2 x 0.5 - 2.5mm²; fine stranded (tinned, with bootlace ferrule or crimp pin) 2 x 0.5 - 1.5mm²
DIN-rail mounting (EN 50022 35mm)
Operating temperature -20°C to +70°C
Storage temperature -40°C to +70°C
Environmental rating IP20

Note

Accessories available separately include thermostats FLZ510, FLZ520, FLZ530, hygrostat FLZ600

Approvals

UL

DIN Rail Mount Enclosure Heaters

Heaters specifically intended for anti-condensation and frost protection in control and equipment cabinets. All types are supplied with DIN rail mounting hardware.

Operating instructions for switch cabinets heating appliances FLH

Radiant Heater and Fan Heater series FLH Data Sheet
