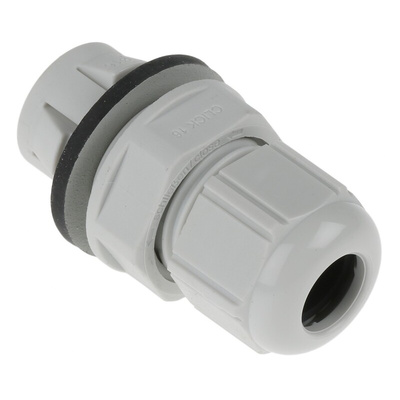

53112686, Lapp SKINTOP Series Grey Polyamide Cable Gland, M16 Thread, 5mm Min, 9mm Max, IP68, Кабельный ввод

0104004
Номер производителя: 53112686Производитель: Lapp
Цена за шт. (норма упаковки 10 шт)
738.50 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

LAPP IP68 Metric Skintop® Click GlandS

With a tough polyamide construction, the Skintop Click series has excellent environmental protection. They are sealed to IP68, which means it is well protected against dust ingress and moisture, even to the point of shallow immersion. This makes them ideal for harsh environments, or even for outdoor use.

The cable gland is also resistant to UV rays and offers protection from vibration.

Features and Benefits

• IP68 environmental resistance
• Click fit easy mounting
• Dynamic operating temperature range of -20°C to +100
• Resistant to UV rays(Black color)
• Vibration protection

Applications

Skintop Click cable glands can be used whenever fast and convenient cable connection is needed with appropriately sized data cables. Due to their excellent long term vibration resistance, Skintop Click cable glands are often used in industrial environments where heavy machinery is used. They can also be used in:

• Plant Engineering
• Measurement and Control Technology
• Control Cabinets

Environment

With a tough polyamide construction, the Skintop Click series has excellent environmental protection. They are sealed to IP68, which means it is well protected against dust ingress, and moisture, even to the point of shallow immersion. This makes them ideal for harsh environments, or even outdoor use.

The cable gland is also resistant to UV rays and offers protection from vibration.

Accessories

Accessories are available for the Skintop Click Range of Cable Glands:
• Removal Tool, size M20 0475069
• Blanking Plug, size M16 0475053
• Blanking Plug, size M20 0475081
• Blanking Plug, size M25 0475085

Standards

Test in acc. EN50262

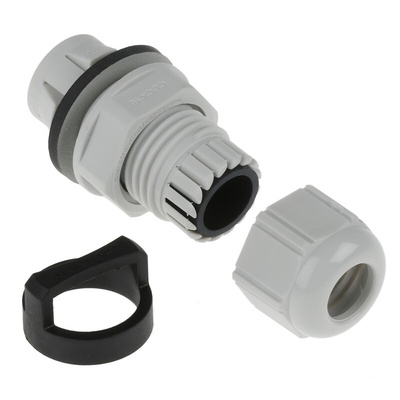

Supplied with

Removal Tool

Техническая спецификация
pdfDatasheet
pdfCable Gland Selection Chart
pdfLapp Datasheet 0104004
pdfLapp Datasheet 0104004
pdf104004 Datasheet
Диапазон рабочих температур:
-20 → +100 °C
Контргайка в комплекте:
Нет
Максимальный диаметр кабеля:
9мм
Материал:
Полиамид
Минимальный диаметр кабеля:
5мм
Рабочая температура - максимальная:
+100°C
Рабочая температура - минимальная:
-20°C
Размер резьбы:
M16
Серия:
SKINTOP
Справка:
SKINTOP CLICK
Степень защиты IP:
IP68
Цвет:
Серый
