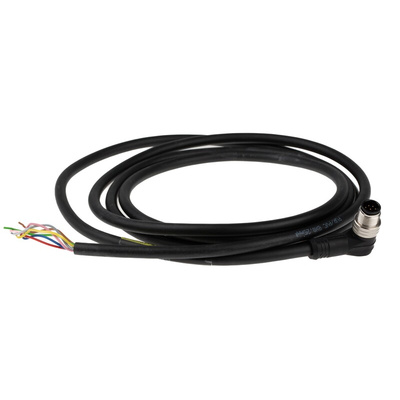

1200651800, Brad from Molex Right Angle Male 8 way M12 to Unterminated Sensor Actuator Cable, 2m, Кабельная сборка

Single Ended Leads

2 metre length leads supplied in 4 or 5 way versions with straight, 90°, or 90° PNP LED connectors incorporating an M12 anti-vibration, corrosion and weld splatter resistant coupling nut. Three cable options are available:

PVC - for general purpose, low cost applications
PUR - for chemical resistance - especially to cutting and other lubricating oils
SJTO - constructed from oil and flame resistant PVC materials and a braided screen, it is physically robust and gives extended life in applications where the cable may be subject to abrasion, crushing and weld splatter
All cables have a conductor csa of 0.34mm²
See stock number 341-8016 typical for splitter boxes for details of LED function
Current Rating (A) 4 A

Brad from Molex Right-Angle Male M12 to Free End Sensor Actuator Cable, 2m Length, 24AWG - 1200651800

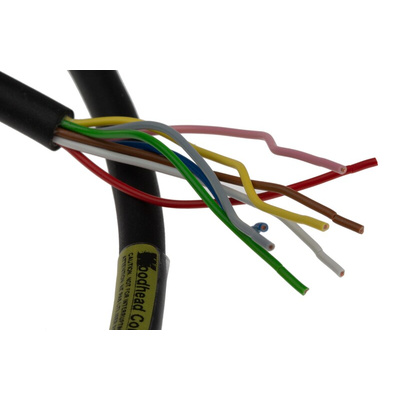

Connect sensors and actuators to your industrial equipment with this weatherproof Brad from Molex cable. The sheath is made of polyurethane (PUR), which means it's resistant to oils and abrasion, and also provides protection from electric shocks. There's a threaded male M12 connector on one end and the other end is unterminated, so you can customise it to suit your needs. To ensure a solid connection and reduce the risk of accidental disconnection, the M12 connector has a coupling nut. Sensor actuator cables like this one are frequently used with proximity sensors and transducers.

• IP68 (ingress protection) rating means it's dust-tight and able to withstand 30 minutes immersion in 1.5m of water
• Coupling nut's knurled surface makes it easy to operate either barehanded or with gloves
• Brass contact material for optimal electrical conductivity

Applications

• Robotics and automation
• Process and packaging equipment
• Material handling machinery

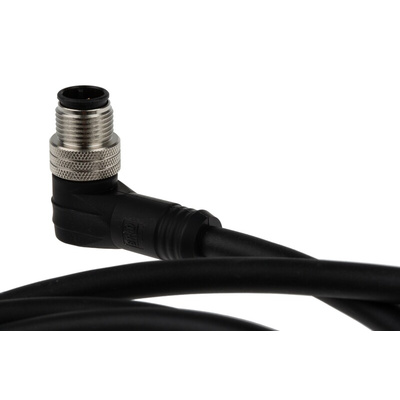

What are the dimensions of the M12 connector?

The length of the M12 connector, measured from the end of the threads to the outer edge of the housing, is 29mm. Its height, measured from the start of the cable to the centre of the threads, is 31mm.
