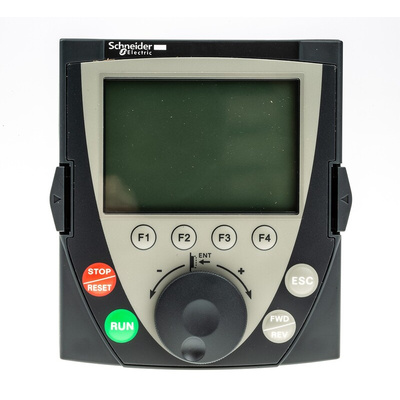

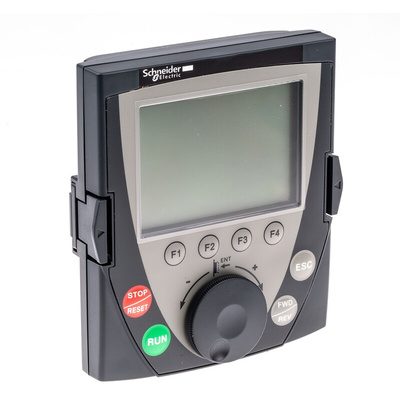

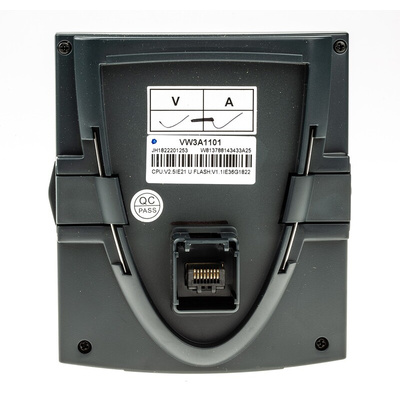

VW3A1101, Schneider Electric Keypad for use with Altivar 212 Series, Altivar 312 Series, Altivar 32 Series, Altivar 61 Series,

0104414
Номер производителя: VW3A1101Производитель: Schneider Electric
Цена за шт.
78378.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Schneider Electric Remote Graphic Display Terminal - VW3 A1

For controlling, displaying current values, adjusting or configuring drives Schneider Electric presents the VW3 A1 a compact user-friendly display terminal that is easy to use. A large number of the Altivar range are compatible with this accessory, including; Altivar 312, Altivar 61, Altivar Lift, Altivar 32, Altivar Machine, ATV320, Altivar 312 Solar, Altivar 212, Altivar 71, Altivar 61Q and the Altivar 71Q. Simply attache the VW3 A1 to the front of the drive and use it remotely in conjunction with the appropriate accessories.

Included is an integrated 7 segment display terminal which can be connected to several drives via multidrop link components. Current values such as motor, input and output are displayed whilst configurations can be saved and downloaded, up to 4 configurations can be saved at any one time. Supporting the display of bar charts the graphic display can be read up to 5 meters away due to the large digits of 240 x 160 pixels. Offering many other solutions also such as assignable function keys, dialogue functions, helps screens, easy navigation, application functions, STOP/RESET buttons and a RUN key for local control of motor operations.

Features and Benefits:

• 8 line message display capacity
• 240 x 160 pixel resolution
• -15 to 50 °C operating temperature
• Control, adjust, configure, save and download
• 4 configurations can be saved at one time
• IP54 degree of protection

Applications - Industrial, Heating, Ventilation and air conditioning. (HVAC)

Accessories & Parts

- Remote mounting kit VW3A1102 (532-9362)
- Door VW3A1103 (532-9378)
- RJ45 Cables VW3A104R10 (532-9413)
- VW3A104R30 (532-9413)
- VW3A104R50 (532-9429)
- VW3A104R100 (532-9407)
- Female RJ45 Adapter VW3A105 (534-9401)

Техническая спецификация
pdfVariable speed drives Altivar 61 Catalogue
pdfVW3A1101 Datasheet
Глубина:
860мм
Длина:
167мм
Для использования с:
Altivar 212 Серия, Altivar 312 Серия, Altivar 32 Серия, Altivar 61 Серия, Altivar 71 Серия
Тип аксессуара:
Keypad
Ширина:
234мм
