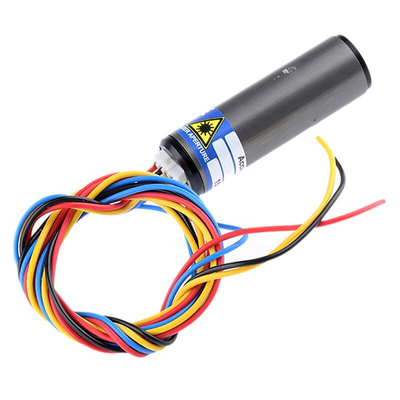

Global Laser ACCULASE-PWM-650-1-S Laser Module, 650nm 1mW, Modulating Dot pattern, PWM control +4.75 → +5.25 V

Номер производителя: ACCULASE-PWM-650-1-S Производитель: Global Laser
Цена за шт.
24601.32 руб. *

Срок поставки: 4-6 недель


* Цена с НДС справочная. Возможно ее увеличение на стоимость доставки по России и сертификации.

Acculase PWM

The Acculase range of laser modules from Global Laser offer high optical and electrical performance. They come in a range of different wavelengths and strengths, with various lenses. The Acculase lasers are precision set during the manufacturing process to ensure an accurate beam alignment with the outer casing. This accuracy enables you to get your laser up-and-running quickly and easily, with immediate laser alignment.
The PWM range offers a PWM output intensity from a TTL level input signal (within the limits of the laser maximum rise/fall time). This functionality enables you to control the average intensity of the laser beam by adjusting the mark to space ratio. Alternatively you can modulate the laser with coded information.
Suitable applications for the Acculase laser modules include; graphics displays, alignment systems, medical applications and telemetry.

Features of the Acculase PWM laser modules:
Use pulse width modulation of the output intensity from a TTL level input signal
High pointing accuracy < 1mRad
Fitted lens provides circular/elliptical beam
Pulse Width Modulation internal driver board
Electrically isolated case
Reverse polarity protected

Laser Modules, Global Laser Warning
  • These laser diode modules are OEM devices and conform to the emission criteria of BS (EN) 60825. It is recommended that this standard and the Data Sheet are read before these lasers are used. Serious eye damage may result if any laser of 1mW or above is pointed directly at the eye.

Техническая спецификация
pdfPremier & Acculase Range Data Sheet
pdfPremier & Acculase Range User Guide

Выходная оптическая мощность:
Диапазон напряжения питания:
+4.75 → +5.25 В
Длина волны лазера:
Класс лазера:
Максимальное напряжение питания:
Минимальное напряжение питания:
15 (диаметр) x 47.5мм
Структура выбросов:
Тип лазера:
Тип управления:
Цвет лазера:
